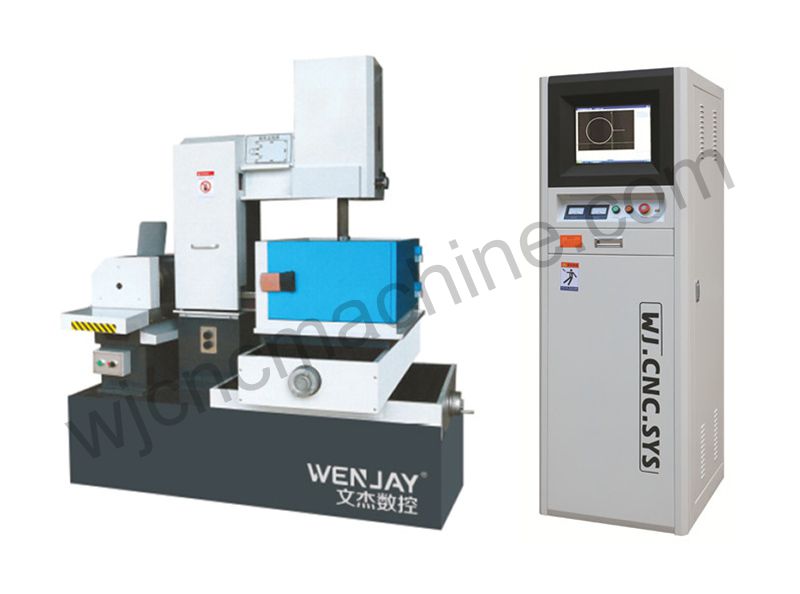

Precise Medium-Speed Wire-Moving Linear Cutting Machine Tool
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: TI SERIES
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT L/C
Function: Wire cut, Multi cut
MOQ: 1 SET
Product Description
Reform the old and establish the new—in a natural and extraordinary way!
1. The supporting UV taper structure fully increases the stability and reliability of taper device;
2. Relying on the unique guide lifting mechanism, the overall center of gravity coincides with the guide direction, which is equipped with the precise worm and gear self-lock device, making the wire interval rise and fall smoothly and stably;
3. The advanced constant-tension mechanism requires no tightening for a long time;
4. The reasonable filtration and circulation system is convenient and practical;
5. The totally-enclosed environmentally-friendly structure with the splash-proof function is easy to operate;
6. The high-grade linear guideway of Taiwan HIWIN and the ball screw of a famous brand are adopted.
The machine tool integrates control, electronics, machinery, material, mechanics, ergonomics and aesthetics, and adopts the well-designed and carefully-manufactured integrated system, which can be called the best of similar products!
TECHNICAL DATA
Type | TI-35SE/ST | TI-45SE/ST |
Worktable Size(mm) | 800×570 | 900×680 |
X、Y axis travel(mm) | 350×450 | 450×550 |
Max.cut thickness(mm) | 320 | 320 |
Wire diameter range(mm) | (Molydbenum wire)Ф0.10~0.22 | |
Wire speed(m/sec) | Variable frequency adjustable | |
Process accuracy(mm)(Vertical) | Multi-cut: 10×10×30(Squire)≤0.010 ; One-cut≤0.012(Multi-cut); Octagon≤0.010; Strightness≤0.010/50mm | |
Process roughness(Ra.um) | Multi-cut: Ra≤1.2(Micro-pulsepower Ra≤0.8)(One-cut): Ra≤2.5 | |
Motoir drve system(axis) | AC servo motor*(Option) | |
Screws&Guides(X、Y) | Precision ball screw/Linear motion guides | |
Wire tension | 3Grade(0/1/2)manual adjust | |
Dielectric conlant Reservoir capacity | Complex or water-dissovle special coolant/65L | |
Power supply | AC3Ф-380v/2.5kva | |
Max.table carry(kg) | 250 | 350 |
Net Wt.of machine Body(kg) | 1600 | 2000 |
Host outline size (L*W*H)(mm) | 1700×1150×1700 | 1950×1350×1700 |
Remarks: ST is stepper control type, SE servo control type |
PACKAGE
1. Shrunck plastic film + plywood case
2. Shrunck plastic film + steel pallet
3. Customerized package
DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 12 hours.
FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for professional operation training.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.

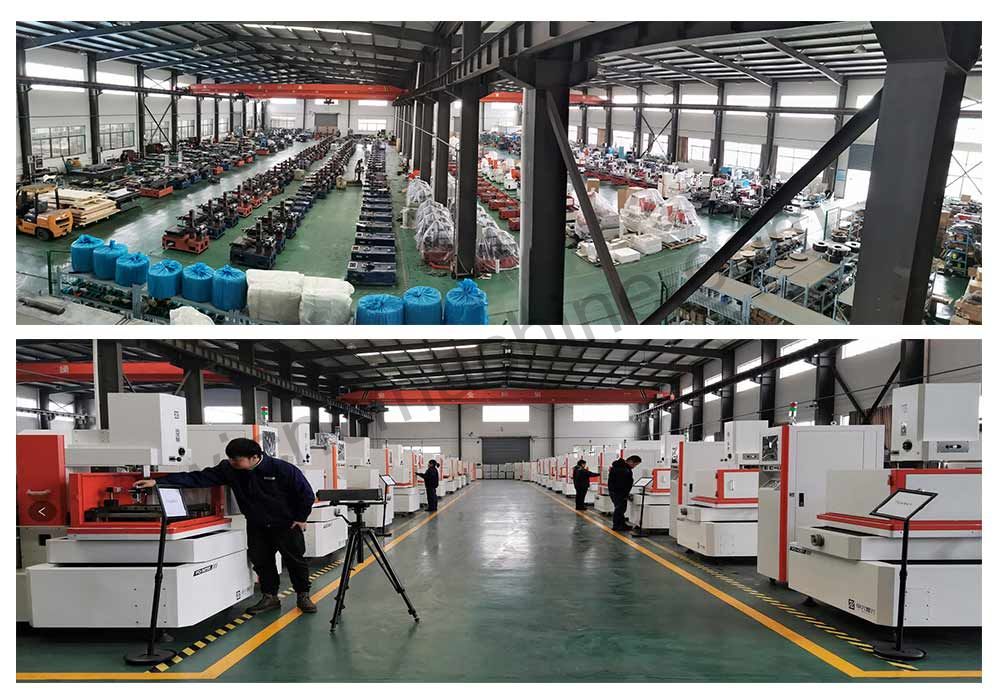

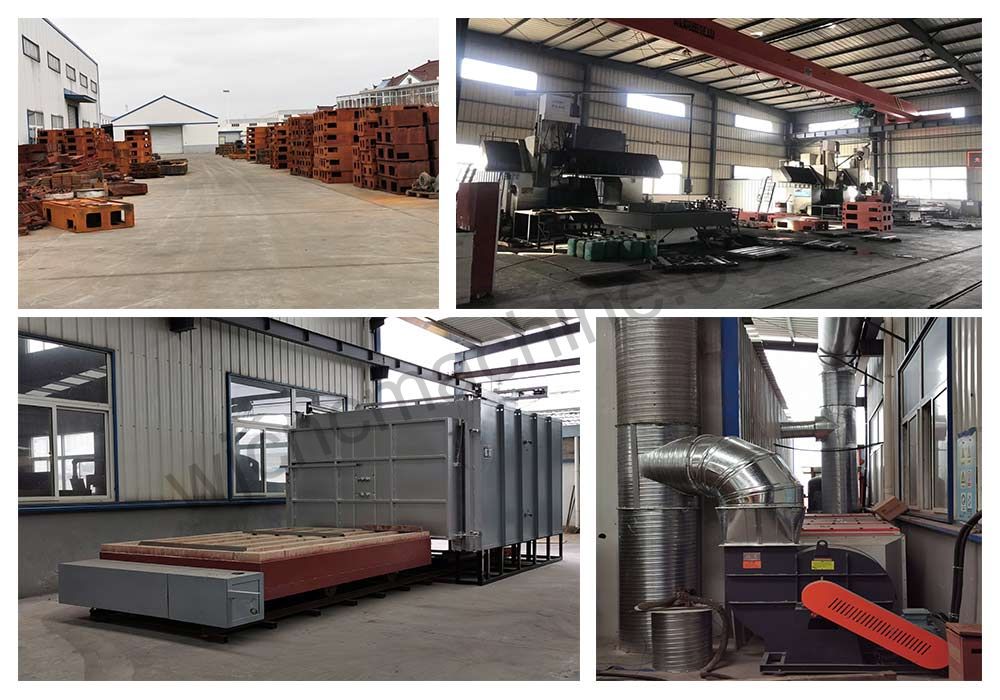

OUR FACTORY
