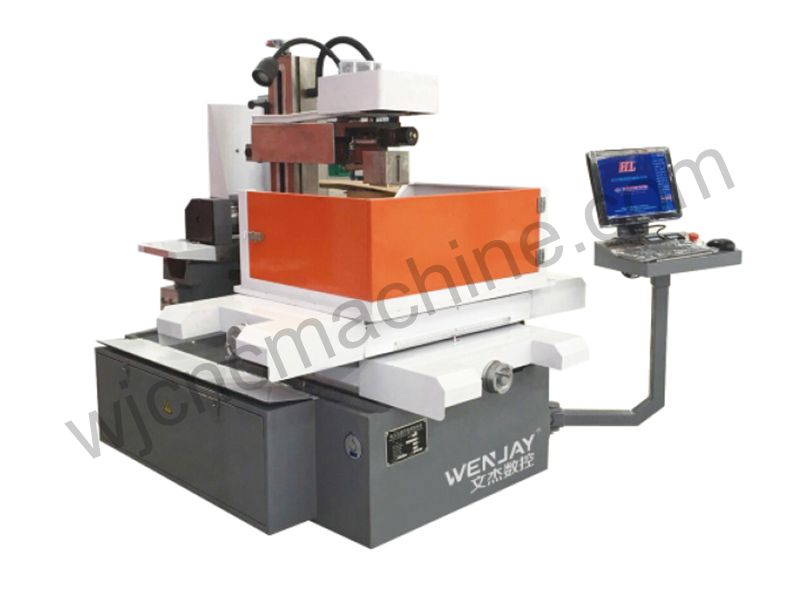

GSDK77 High-Speed Wire-Cutting Machine EDM
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: GSDK77
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT L/C
Function: Wire cut, Single cut, High speed
Cutting Speed: 15,000mm2/hour
MOQ: 1 SET
Product Description
The new high-speed linear cutting machine tool manufactured by the Company changes the traditional structure and adopts the computer integrated control, which has the following characteristics:
★Efficiency: Cutting efficiency is 15,000 m2 per hour
★Low consumption: 600,000-800,000 m2/one litre of cutting fluid
★Environmental protection:
(1) It is equipped with automatic demist device, which eliminates the free oil, water and gas in the air and greatly improves the operating environment;
(2) cutting fluid adopts the exclusive formula, which requires no replacement for lifetime. When the concentration is low, it is necessary to add cutting fluid only, rather than dumping, which is free from contamination. ★It adopts the integrated computer control, which integrates computer, high-frequency power supply, driving power and electric equipment for machine tools, so that it is attractive, environmentally-friendly, easy to operate and reduces the floor area.
TECHNICAL DATA
Taper Angle: 0~12°
Type | GSDK7720 | GSDK7725 | GSDK7732 | GSDK7732B | GSDK7740 | GSDK7740B |
Worktable Size (mm) | 250*420 | 330*520 | 360*600 | 410*670 | 460*680 | 520*745 |
X,Y-axis trip(mm) | 200*250 | 250*300 | 320*400 | 350*450 | 400*500 | 450*550 |
U,V-axis trip(mm) | 70×70 | |||||
Max load weight (KG) | 200 | 250 | 350 | 400 | 450 | 600 |
Max linear cutting thickness (mm) | 250 | 400mm(330) | 500mm(430) | 500mm(430) | 500mm(430) | 500mm(430) |
Machined taper/work piece thickness | 12°/80mm | |||||
Z-axis elevation mode | Manual/Electric Elevation | |||||
Type of guide track | Slide guide | |||||
Electrode wire diameter range (mm) | Ф0.15~0.20mm | |||||
Wire speed (m/sec) | 1~11.4m/sec 7 frequency conversion adjustable | |||||
Machining accuracy (mm) | ≤0.015 | |||||
Max cutting efficiency(mm²/min) | ≥250 | |||||
Optimum surface roughness (µm) | Ra≤2.5 | |||||
Control mode | X, Y, U, V stepper motor | |||||
Number of control axis | Four-axis linkage | |||||
Min instruction unit (mm) | 0.001 | |||||
Power supply | 380V/50HZ 3P4W | |||||
Max operating current (A) | 12 | |||||
Machine tool power consumption | <2(KW) | |||||
Working fluid | Special for Wenjie (self-made), equipped with a concentration meter | |||||
Working fluid tank volume (L) | 55 | |||||
Work liquid filtrate way | Strainer, magnetic plate | |||||
Weight (KG) | 800 | 900 | 1000 | 1100 | 1300 | 1400 |
Size (m) | 1.06*0.8*1.1 | 1.4*0.9*1.35 | 1.5*1.2*1.4 | 1.6*1.3*1.4 | 1.7*1.4*1.4 | 1.75*1.5*1.4 |
Type | GSDK7740F | GSDK7750 | GSDK7750B | GSDK7750F | GSDK7763 | GSDK7763F |
Worktable Size (mm) | 480*820 | 564*904 | 615*950 | 594*1064 | 700*1060 | 700*1200 |
X,Y-axis trip(mm) | 400*630 | 500*630 | 550*690 | 500*800 | 630*800 | 630*1000 |
U,V-axis trip(mm) | 70×70 | |||||
Max load weight (KG) | 700 | 800 | 900 | 1000 | 1100 | 1300 |
Max linear cutting thickness (mm) | 500mm(430) | 600mm(530) | 600mm(530) | 600mm(530) | 600mm(530) | 600mm(530) |
Machined taper/work piece thickness | 12°/80mm | |||||
Z-axis elevation mode | Manual/Electric Elevation | |||||
Type of guide track | Slide guide | |||||
Electrode wire diameter range (mm) | Ф0.15~0.20mm | |||||
Wire speed (m/sec) | 1~11.4m/sec 7 frequency conversion adjustable | |||||
Machining accuracy (mm) | ≤0.015 | |||||
Max cutting efficiency(mm²/min) | ≥250 | |||||
Optimum surface roughness (µm) | Ra≤2.5 | |||||
Control mode | X, Y, U, V stepper motor | |||||
Number of control axis | Four-axis linkage | |||||
Min instruction unit (mm) | 0.001 | |||||
Power supply | 380V/50HZ 3P4W | |||||
Max operating current (A) | 12 | |||||
Machine tool power consumption | <2(KW) | |||||
Working fluid | Special for Wenjie (self-made), equipped with a concentration meter | |||||
Working fluid tank volume (L) | 55 | |||||
Work liquid filtrate way | Strainer, magnetic plate | |||||
Weight (KG) | 1500 | 1900 | 2000 | 2100 | 2600 | 2800 |
Size (m) | 2.1*1.5*1.4 | 2.1*1.7*1.74 | 2.15*1.8*1.74 | 2.4*1.8*1.74 | 2.4*2.25*1.65 | 2.4*2.4*1.65 |
Type | GSDK7780 | GSDK7780F | GSDK77100 | GSDK77100B |
Worktable Size (mm) | 850×1340 | 900×1500 | 1100×1500 | 1100×1700 |
X,Y-axis trip(mm) | 800×1000 | 800×1200 | 1000×1200 | 1000×1400 |
U,V-axis trip(mm) | 70×70 | |||
Max load weight (KG) | 1500 | 2600 | 3000 | 3400 |
Max linear cutting thickness (mm) | 800 | 800 | 1000 | 1000 |
Machined taper/work piece thickness | 12°/80mm | |||
Z-axis elevation mode | Manual/Electric Elevation | |||
Type of guide track | Slide guide | |||
Electrode wire diameter range (mm) | Ф0.15~0.20mm | |||
Wire speed (m/sec) | 1~11.4m/sec 7 frequency conversion adjustable | |||
Machining accuracy (mm) | ≤0.015 | |||
Max cutting efficiency(mm²/min) | ≥250 | |||
Optimum surface roughness (µm) | Ra≤2.5 | |||
Control mode | X, Y, U, V stepper motor | |||
Number of control axis | Four-axis linkage | |||
Min instruction unit (mm) | 0.001 | |||
Power supply | 380V/50HZ 3P4W | |||
Max operating current (A) | 12 | |||
Machine tool power consumption | <2(KW) | |||
Working fluid | Special for Wenjie (self-made), equipped with a concentration meter | |||
Working fluid tank volume (L) | 55 | |||
Work liquid filtrate way | Strainer, magnetic plate | |||
Weight (KG) | 3800 | 4600 | 5000 | 5500 |
Size (m) | 3×2.5×2 | 3×2.7×2.2 | 3×2.8×2.5 | 3.28×2.8×2.5 |
Type | GSDK77120 | GSDK77120B | GSDK77120F | GSDK77160 |
Worktable Size (mm) | 1900*1310 | 2100*1310 | 2300*1310 | 2300*1670 |
X,Y-axis trip(mm) | 1200*1600 | 1200*1800 | 1200*2000 | 1600*2000 |
U,V-axis trip(mm) | 70×70 | |||
Max load weight (KG) | 4500 | 5500 | 6000 | 8000 |
Max linear cutting thickness (mm) | 1000 | 1000mm(930) | 1000mm(930) | 1000mm(930) |
Machined taper/work piece thickness | 12°/80mm | |||
Z-axis elevation mode | Manual/Electric Elevation | |||
Type of guide track | Slide guide | |||
Electrode wire diameter range (mm) | Ф0.15~0.20mm | |||
Wire speed (m/sec) | 1~11.4m/sec 7 frequency conversion adjustable | |||
Machining accuracy (mm) | ≤0.015 | |||
Max cutting efficiency(mm²/min) | ≥250 | |||
Optimum surface roughness (µm) | Ra≤2.5 | |||
Control mode | X, Y, U, V stepper motor | |||
Number of control axis | Four-axis linkage | |||
Min instruction unit (mm) | 0.001 | |||
Power supply | 380V/50HZ 3P4W | |||
Max operating current (A) | 12 | |||
Machine tool power consumption | <2(KW) | |||
Working fluid | Special for Wenjie (self-made), equipped with a concentration meter | |||
Working fluid tank volume (L) | 55 | |||
Work liquid filtrate way | Strainer, magnetic plate | |||
Weight (KG) | 8000 | 9000 | 10000 | 12000 |
Size (m) | 4*3.1*2.8 | 4*3.3*2.8 | 4*3.5*2.8 | 4.5×3.5×2.8 |
