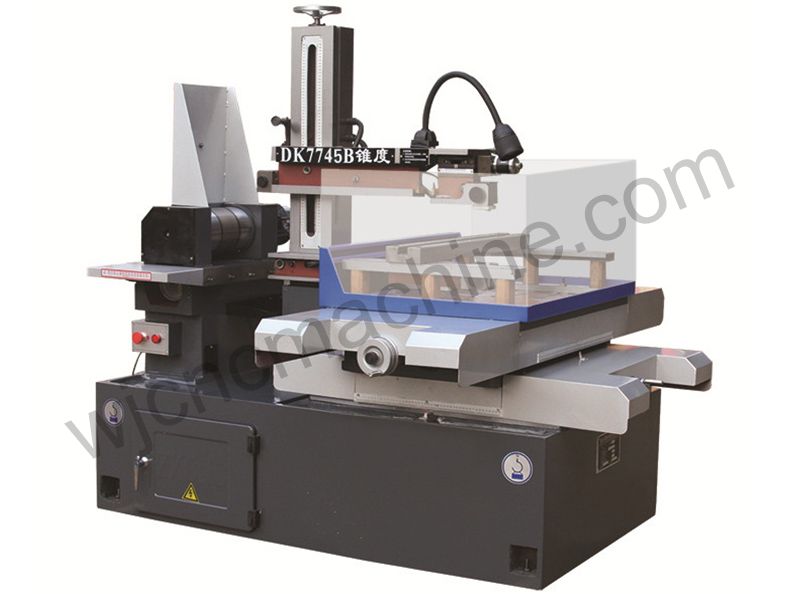

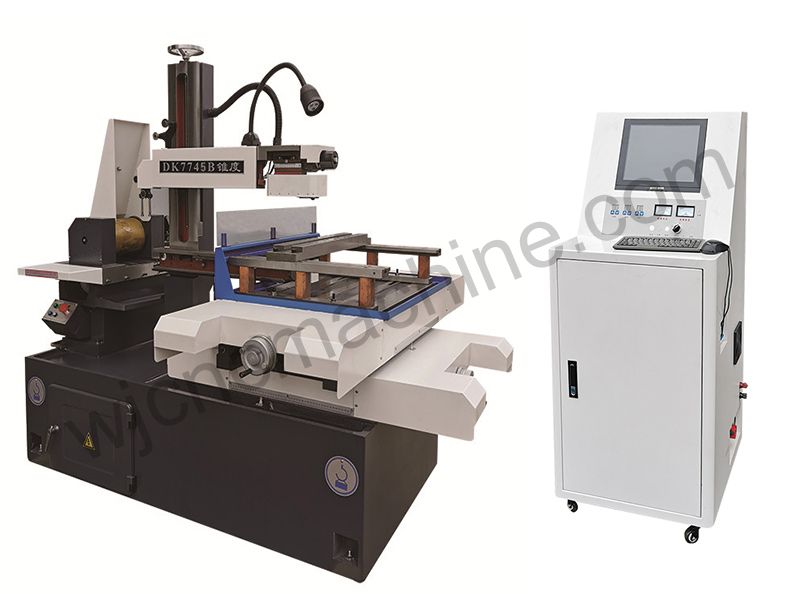

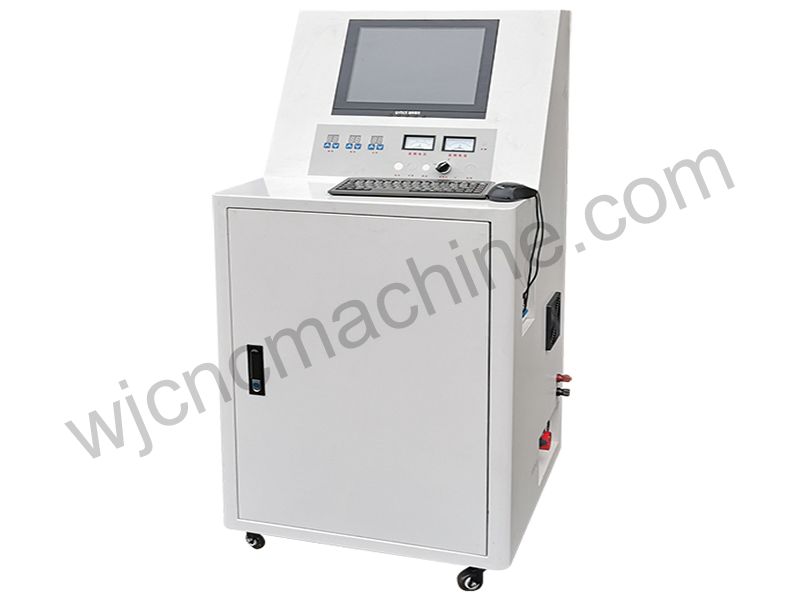

High Speed WEDM With Controller Cabinet Seperated

Machine Type: Wire EDM

Condition: New

CNC or not: CNC

Model: GSDK77

Brand: WENJAY

Place of Origin: Jiangsu, China

Certification: ISO9001:2008, CE

Payment: TT  L/C

Function: Wire cut, Single cut, High speed

Cutting Speed: 15,000mm2/hour

MOQ: 1 SET


Product Description

This machine is a simplified version of the high-speed integrated machine, which has the characteristics of high efficiency, low consumption, environmental protection, and high cost performance etc.


PERFORMANCE

1. Four axis linkage, wire breaking protection.

2. Efficiency: Cutting efficiency is 15,000 m2 per hour.

3. Low consumption: 600,000-800,000 m2/one litre of cutting fluid.

4. Low noise, reasonable price.

5. Easy to maintain.

6. Especially suitable for mould processing.

7. Cutting fluid adopts the exclusive formula, which requires no replacement for lifetime. When the concentration is low, it is necessary to add cutting fluid only, rather than dumping, which is free from contamination.


TECHNICAL DATA

                                                                                                                                   Taper Angle: 0~12°

TypeGSDK7720GSDK7725GSDK7732GSDK7732BGSDK7740GSDK7740B
Worktable Size (mm)250*420330*520360*600410*670460*680520*745
X,Y-axis trip(mm)200*250250*300320*400350*450400*500450*550
U,V-axis trip(mm)70×70
Max load weight (KG)200250350400450600
Max linear cutting thickness (mm)250400mm(330)500mm(430)500mm(430)500mm(430)500mm(430)
Machined taper/work piece thickness12°/80mm
Z-axis elevation modeManual/Electric Elevation
Type of guide trackSlide guide
Electrode wire diameter range (mm)Ф0.15~0.20mm
Wire speed (m/sec)1~11.4m/sec 7 frequency conversion adjustable
Machining accuracy (mm)≤0.015
Max cutting efficiency(mm²/min)≥250
Optimum surface roughness (µm)Ra≤2.5
Control modeX, Y, U, V stepper motor
Number of control axisFour-axis linkage
Min instruction unit (mm)0.001
Power supply380V/50HZ  3P4W
Max operating current (A)12
Machine tool power consumption <2(KW)
Working fluidSpecial for Wenjie (self-made), equipped with a concentration meter
Working fluid tank volume (L)55
Work liquid filtrate wayStrainer, magnetic plate
Weight (KG)8009001000110013001400
Size (m)1.06*0.8*1.11.4*0.9*1.351.5*1.2*1.41.6*1.3*1.41.7*1.4*1.41.75*1.5*1.4

                                                                                                                               Taper Angle: 0~12°

TypeGSDK7740FGSDK7750GSDK7750BGSDK7750FGSDK7763GSDK7763F
Worktable Size (mm)480*820564*904615*950594*1064700*1060700*1200
X,Y-axis trip(mm)400*630500*630550*690500*800630*800630*1000
U,V-axis trip(mm)70×70
Max load weight (KG)700800900100011001300
Max linear cutting thickness (mm)500mm(430)600mm(530)600mm(530)600mm(530)600mm(530)600mm(530)
Machined taper/work piece thickness12°/80mm
Z-axis elevation modeManual/Electric Elevation
Type of guide trackSlide guide
Electrode wire diameter range (mm)Ф0.15~0.20mm
Wire speed (m/sec)1~11.4m/sec 7 frequency conversion adjustable
Machining accuracy (mm)≤0.015
Max cutting efficiency(mm²/min)≥250
Optimum surface roughness (µm)Ra≤2.5
Control modeX, Y, U, V stepper motor
Number of control axisFour-axis linkage
Min instruction unit (mm)0.001
Power supply380V/50HZ  3P4W
Max operating current (A)12
Machine tool power consumption <2(KW)
Working fluidSpecial for Wenjie (self-made), equipped with a concentration meter
Working fluid tank volume (L)55
Work liquid filtrate wayStrainer, magnetic plate
Weight (KG)150019002000210026002800
Size (m)2.1*1.5*1.42.1*1.7*1.742.15*1.8*1.742.4*1.8*1.742.4*2.25*1.652.4*2.4*1.65


PACKAGE

1. Shrunck plastic film + plywood case

2. Shrunck plastic film + steel pallet

3. Customerized package

High Speed WEDM With Controller Cabinet Seperated



DELIVERY TIME

10 days after order confirmation


WARRANTY

One year

During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.

2. Technical files service & on-site training service provided.

3. Offer machine operation video.

4. Spare parts replacement and repair service provided.

5. All questions will be replied within 12 hours.


FAQ

Q: Are you a manufacturer or trading company?

A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.



Q: Can you provide training and maintenance?

A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for professional operation training.



Q: What information will you need to make the proposal?

A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.
