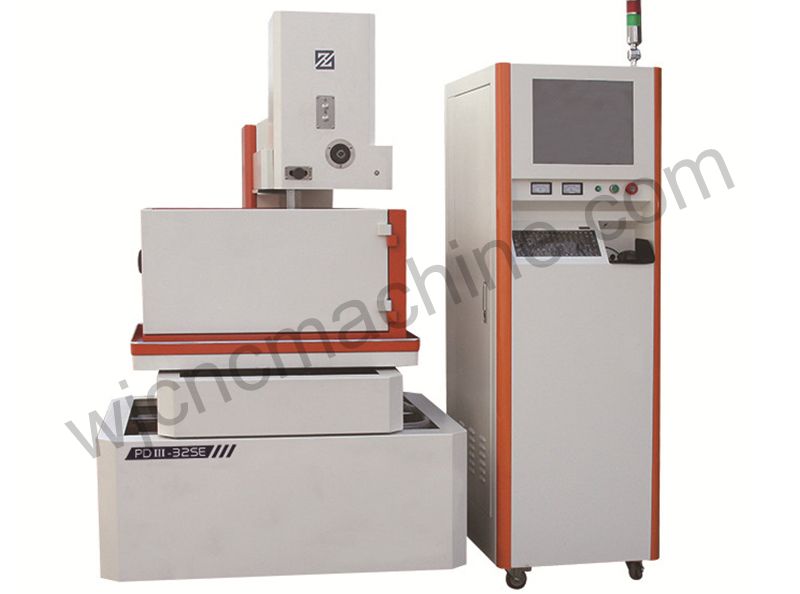

PDⅢ Series Medium Speed WEDM

Machine Type: Wire EDM

Condition: New

CNC or not: CNC

Model: PDⅢ SERIES

Brand: WENJAY

Place of Origin: Jiangsu, China

Certification: ISO9001:2008, CE

Payment: TT L/C

Function: Wire cut, Multi cut

MOQ: 1 SET


Product Description

INTRODUCTION

PDⅢ Series Medium Speed Wedm

1. Hot sale of Wenjie CNC

2. Easy to operate, high quality & reasonable price. It is the first choice of many SMEs & individual household

3. Full close-loop control system can be customerized


FEATURES

1. It has good stability, and the workbench has a strong anti-interference capability to maintain a stable running speed after the accurate calculate of load and inertia;

2. The servo/stepping motor and ball screw are driven by means of direct connection, which has a simple structure, reduces assembly errors, has a high response speed and good dynamic and static characteristics.


TECHNICAL DATA

ModelPDⅢ 530PDⅢ 640PDⅢ 850
Worktable Travel(X*Y) mm350*500400*600500*800
Worktable Size(L*W) mm870*6201000*6801200*790
Max. Worktable Load Capacity (kg)450600750
Max. Cutting Thickness (mm)300300350
Max. Taper/Workpiece Thickness (mm)±6°/80(Standard)
Re-position Accuracy (mm)≤0.005
Best Surface Size Deviation (mm)≤0.010
Drive ModeStepping/Panasonic AC Servo
Max. Cutting Efficiency (mm2/min)180mm2/min
3 Times Cut Average Cutting Efficiency (mm2/min)80mm2/min
Best Surface Finish (μm)Single Cut Ra≤2.3um、Secondary Cutting Ra≤1.8um、Third Cut Ra≤1.5um
Electrode Wire Diameter0.1-0.22mm
Power Consumption<2kw
Working LiquidJR3A/DIC206
Power Supply3P4W 380VAC/50HZ
Machine Weight (kg)150018802350
Machine Size(L*W*H) MM1700*1250*20001850*1670*20002120*1970*2150

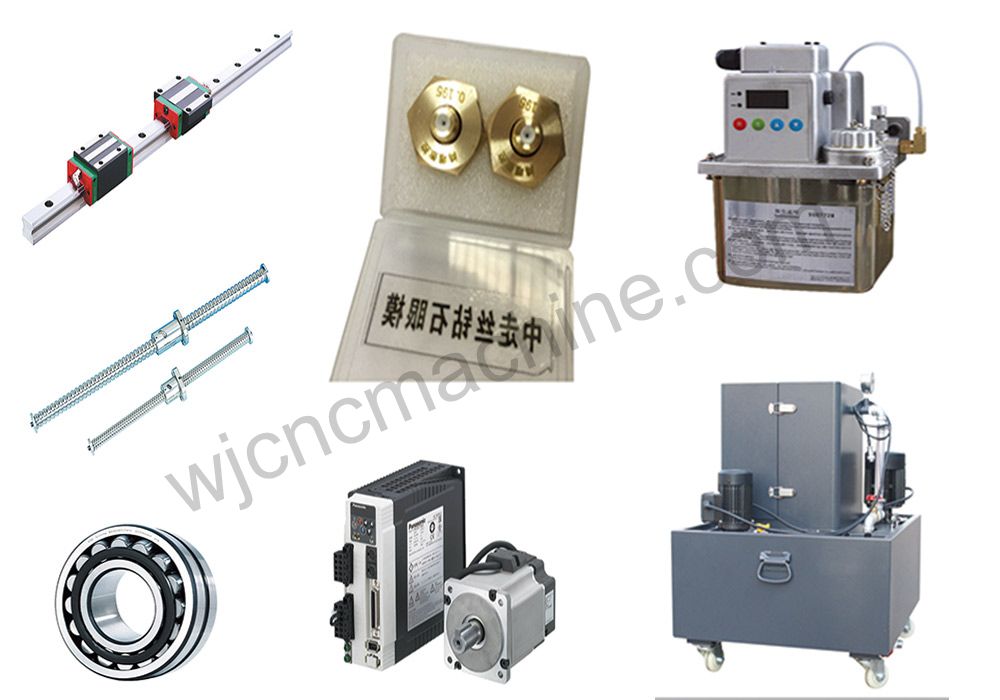

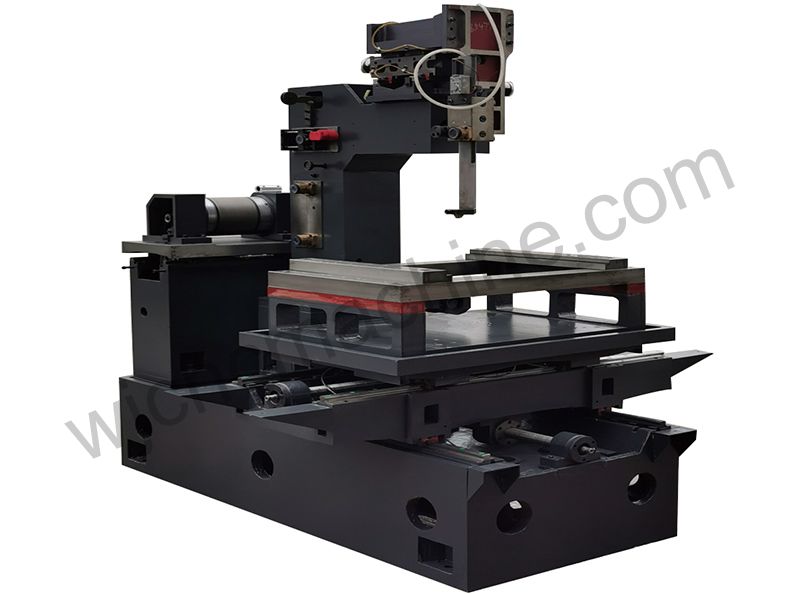

PRODUCT DETAILS

PDⅢ Series Medium Speed  WEDMPDⅢ Series Medium Speed  WEDM


PACKAGE

1. Shrunck plastic film + plywood case

2. Shrunck plastic film + steel pallet

3. Customerized package

PDⅡ Series Medium Speed Wedm


DELIVERY TIME

15 days after order confirmation



WARRANTY

One year

During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.

2. Technical files service & on-site training service provided.

3. Offer machine operation video.

4. Spare parts replacement and repair service provided.

5. All questions will be replied within 12 hours.


WORKPIECE SHOW

 PDI Series Medium Speed Wedm

FAQ

Q: Are you a manufacturer or trading company?

A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.



Q: Can you provide training and maintenance?

A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for professional operation training.



Q: What information will you need to make the proposal?

A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.
