PDI Series Medium Speed Wedm

Machine Type: Wire EDM

Condition: New

CNC or not: CNC

Model: PDI SERIES

Brand: WENJAY

Place of Origin: Jiangsu, China

Certification: ISO9001:2008, CE

Payment: TT L/C

Function: Wire cut, Multi cut

MOQ: 1 SET


Product Description

INTRODUCTION

Medium-speed Wire cut Electrical Discharge Machining (MS-WEDM for short) belongs to the category of reciprocating high-speed wire-moving wire cut electric discharge machine, which achieves the multiple cutting functions on high-speed reciprocating wire-moving wire cut electric discharge machine and is commonly known as "medium wire-moving cutting". Wenjie MS-WEDM has a good taste, high quality, super stability and low price!


PDI Series Medium Speed Wedm (5 axis, Servo Drive, 4 axis Linkage)

1. Take the structure of wire cut machine edm (brass wire) for reference

2. High accuracy, high surface finish. 0~12° taper angle, accuracy for multi-cut can be controlled within 0.01mm

3. Machine tools' performance indicators are in the lead of the industry

4. Full close-loop control system can be customerized


FEATURES

1. It adopts the semi-closed loop control to verify and set the structure and parameters accurately in the proofreading link of the entire driving system, so as to further improve the positioning accuracy and moving precision of the workbench drive;

2. It has good stability, and the workbench has a strong anti-interference capability to maintain a stable running speed after the accurate calculate of load and inertia;

3. The servo motor and ball screw are driven by means of direct connection, which has a simple structure, reduces assembly errors, has a high response speed and good dynamic and static characteristics.


TECHNICAL DATA

ModelPDⅠ430PDⅠ640PDⅠ850PDⅠ860PDⅠ1080
Worktable Travel(X*Y) mm320*400400*600500*800630*800800*1000
Worktable Size(L*W) mm770*580970*6801240*8101210*9101500*1150
Max. Worktable Load Capacity (kg)50065090010001600
Max. Cutting Thickness (mm)300300500350/500500/800
Max. Taper/Workpiece Thickness  (mm)±6°/80(Standard)or ±10°(0ptional)
Re-position Accuracy (mm)≤0.005
Electrode Wire Diameter0.1-0.22mm
Power Consumption<2kw
Working LiquidJR3A/DIC206
Power Supply3P4W 380V/50HZ
Best Surface Size Deviation  (mm)≤0.008
Drive ModeStepping/Panasonic AC Servo
Max. Cutting Efficiency (mm2/min)180mm2/min
3 Times Cut Average Cutting Efficiency (mm2/min)80mm2/min
Best Surface Finish (μm)Single Cut Ra≤2.3um、Secondary Cutting Ra≤1.6um、Third Cut Ra≤1.0um
Machine Weight (kg)24003350470047007450
Machine Size(L*W*H) M1.8*1.23*2.232.065*1.65*2.232.45*2.2*2.552.5*2.2*2.253.22*2.56*3.3


PRODUCT DETAILS

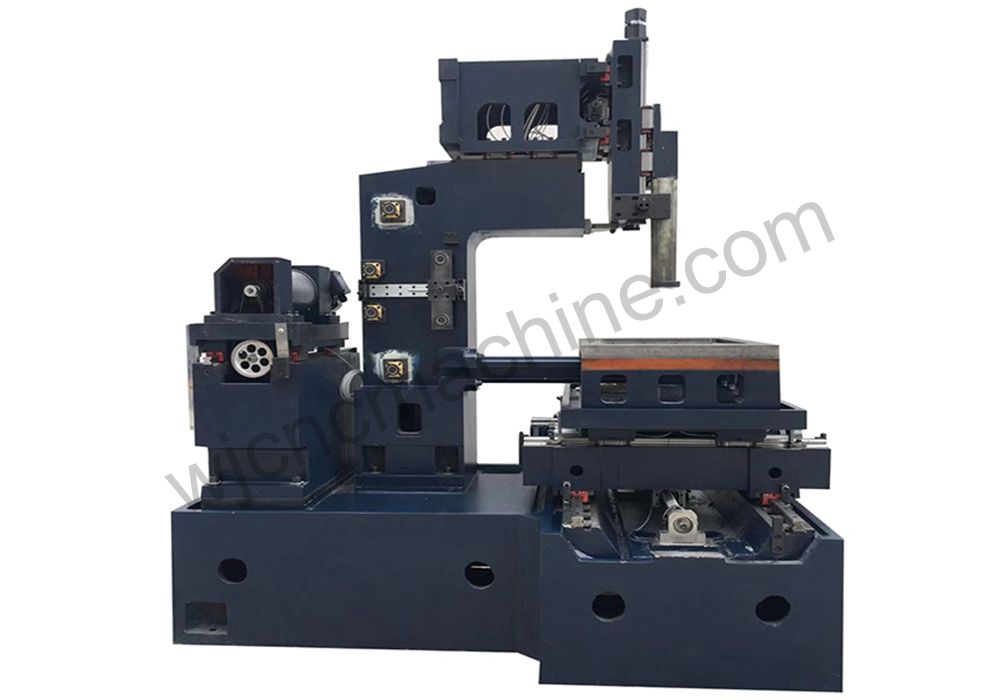

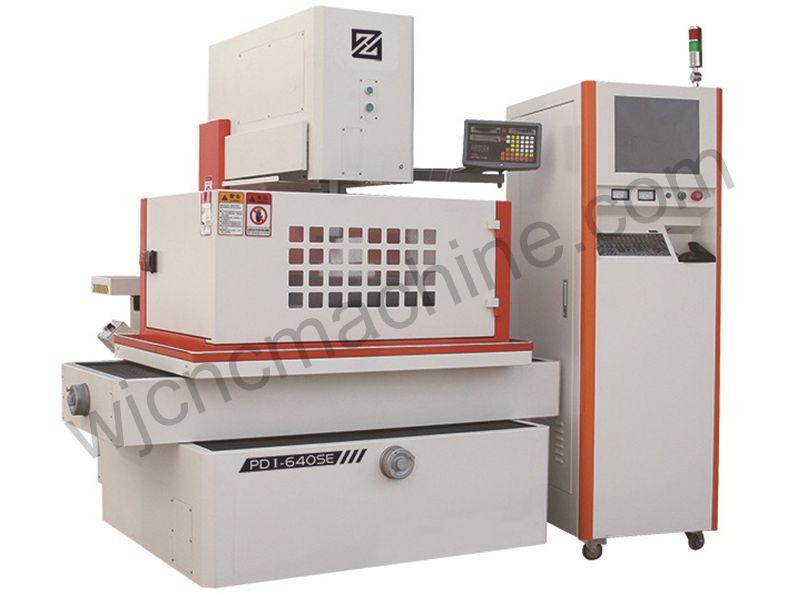

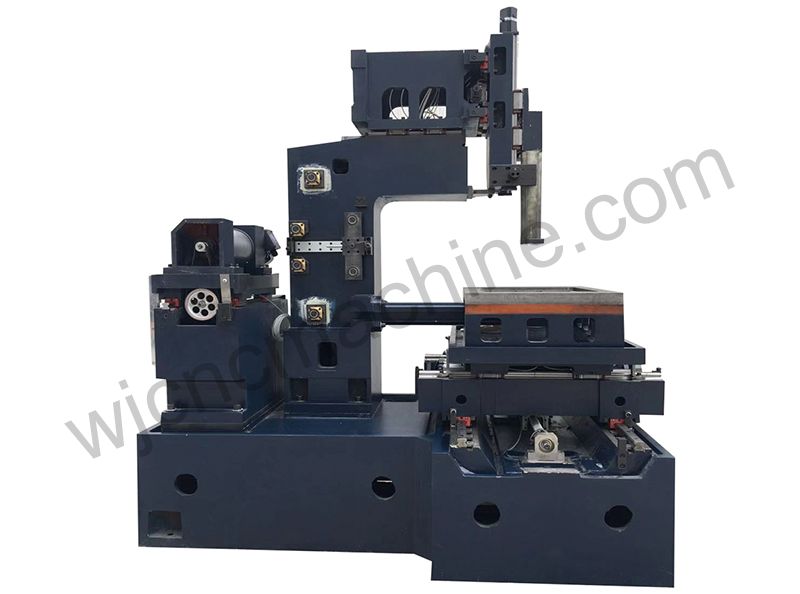

PDI Series Medium Speed Wedm

PACKAGE

1. Shrunck plastic film + plywood case

2. Shrunck plastic film + steel pallet

3. Customerized package

PD SERIES MEDIUM SPEED WIRE CUT MACHINE EDM

DELIVERY TIME

15 days after order confirmation



WARRANTY

One year

During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.

2. Technical files service & on-site training service provided.

3. Offer machine operation video.

4. Spare parts replacement and repair service provided.

5. All questions will be replied within 12 hours.
