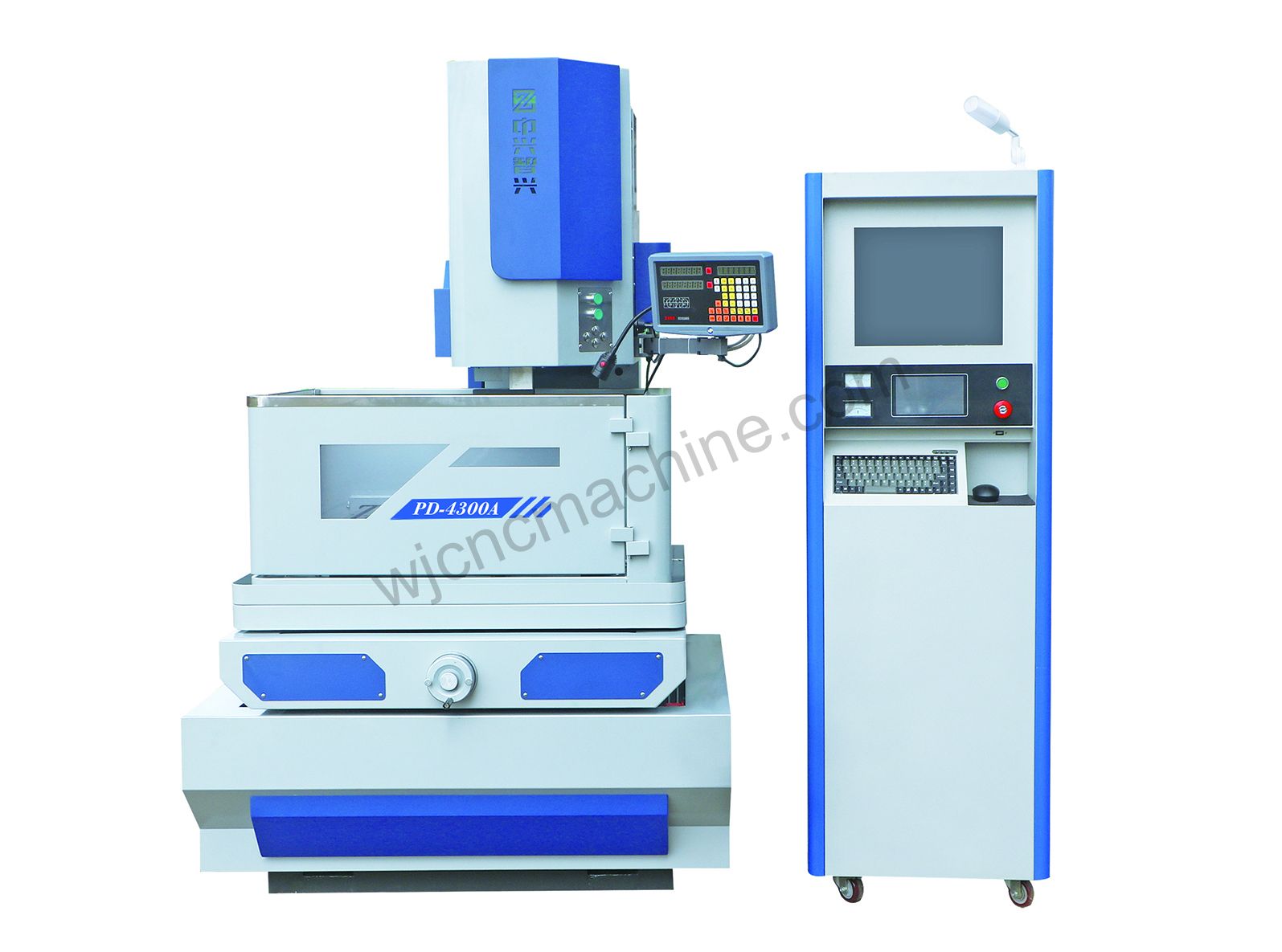

PDY Series Medium Speed WEDM With Large Swing Taper
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: PDY SERIES
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT L/C
Function: Wire cut, Multi cut
MOQ: 1 SET
Product Description
INTRODUCTION
PDY SERIES MEDIUM SPEED WEDM (LAGER SWING TAPER, 4 AXIS SERVO DRIVE)
1. All PDⅡ series machine tools can be customized with a large swing taper of 0-90°
2. High accuracy, good surface finish, and stable performance
3. Be suitable for high precision, high surface finish, top & bottom special-shaped molds and products in aerospace, aviation, military and other fields
FEATURES
1. It has good stability, and the workbench has a strong anti-interference capability to maintain a stable running speed after the accurate calculate of load and inertia;
2. The servo/stepping motor and ball screw are driven by means of direct connection, which has a simple structure, reduces assembly errors, has a high response speed and good dynamic and static characteristics.
TECHNICAL DATA
| Model | PDY-32SE/ST | PDY-40SE/ST | PDY-50SE/ST | PDY-63SE/ST |
| Worktable Size (L*W) mm | 750×570mm | 900×680mm | 1040×790mm | 1230×950mm |
| Worktable Travel(X*Y) mm | 320×400mm | 400×500mm | 500×630mm | 630×800mm |
| Max Cutting Thickness（mm） | 300mm | 300mm | 350mm | 450mm |
| Max Load Weight（kg） | 450kg | 550kg | 700kg | 850kg |
| Max Cutting Efficiency (mm2/min) | 180mm²/min | |||
| Max Processing Current | 7A | |||
| Surface Roughness | First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um | |||
| Cutting accuracy | Line≤±0.0025mm | |||
| Hop accuracy | 0.01mm/0-200mm、0.015mm/0-350mm、0.02mm/0-500mm | |||
| Max cutting taper | 0~90° | |||
| Electrode wire diameter range (molybdenum wire) | 0.12-0.25mm(standard 0.18mm) | |||
| Driving mode | X, Y, U, V-axis servo (Panasonic servo) or stepping ( 5-phase 10-pat), Z-axis electric silent elevation | |||
| Cutting fluid box configuration | High pressure slow wire filtration, volume 100L | |||
| Cutting fluid ratio | Dic liquid mixed with pure water, concentration 8-12 | |||
| Power consumption of complete machine | ＜2KW | |||
| Power supply | 3P4W 380VAC/50HZ | |||
| Weight (kg) | 1530 | 1750 | 2400 | 3380 |
| Machine Size (L*W*H) mm | 1720×1160×2000 | 1890×1350×2000 | 2150×1660×2200 | 2520×2100×2350 |

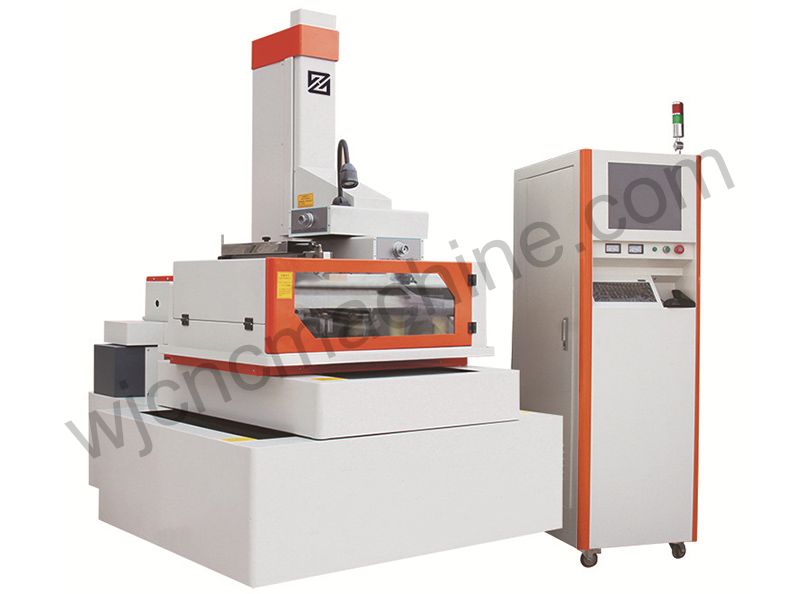

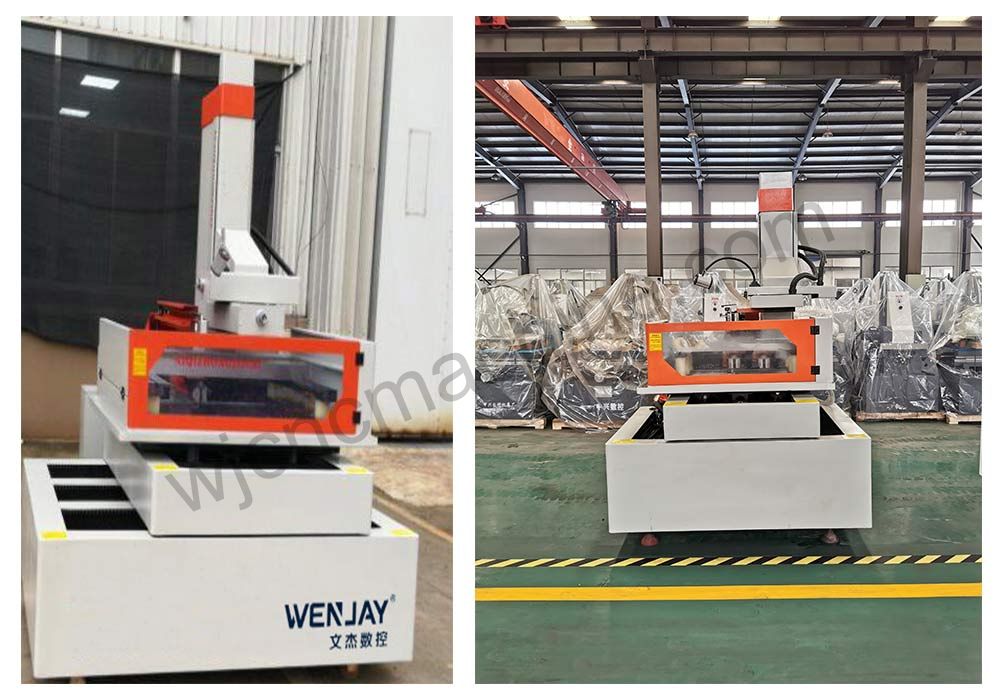

PICTURES FOR REFERENCE
PACKAGE
1. Shrunck plastic film + plywood case
2. Shrunck plastic film + steel pallet
3. Customerized package
DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 12 hours.
