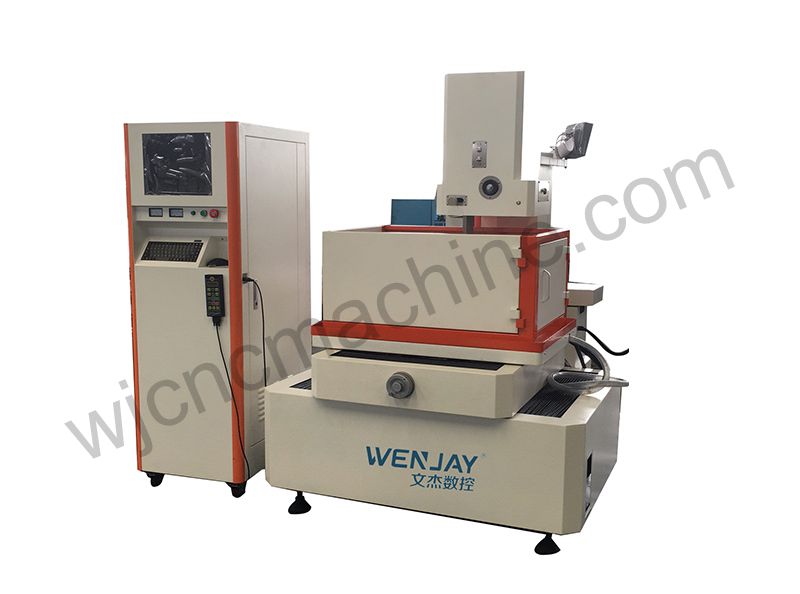

PD SERIES MEDIUM SPEED WIRE CUT MACHINE EDM
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: EP SERIES
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT L/C
Function: Wire cut, Multi cut
MOQ: 1 SET
Product Description
INTRODUCTION
Medium-speed Wire cut Electrical Discharge Machining (MS-WEDM for short) belongs to the category of reciprocating high-speed wire-moving wire cut electric discharge machine, which achieves the multiple cutting functions on high-speed reciprocating wire-moving wire cut electric discharge machine and is commonly known as "medium wire-moving cutting". Wenjie MS-WEDM has a good taste, high quality, super stability and low price!
FEATURES
1. It adopts the semi-closed loop control to verify and set the structure and parameters accurately in the proofreading link of the entire driving system, so as to further improve the positioning accuracy and moving precision of the workbench drive;
2. It has good stability, and the workbench has a strong anti-interference capability to maintain a stable running speed after the accurate calculate of load and inertia;
3. The servo motor and ball screw are driven by means of direct connection, which has a simple structure, reduces assembly errors, has a high response speed and good dynamic and static characteristics.
TECHNICAL DATA
| Model | PD-32SE/ST | PD-40SE/ST | PD-50SE/ST | PD-63SE/ST |
| Worktable Size (W*L) | 760×520mm | 850×600mm | 1000×750mm | 1170×830mm |
| Max trip of X,Y-axis of the worktable （Y×X） | 400×320mm | 500×400mm | 630×500mm | 800×630mm |
| Max cutting thickness | 250mm | 250mm | 300mm | 300mm |
| Max load weight | 300kg | 500kg | 800kg | 1000kg |
| Max cutting efficiency | 180mm²/min | |||
| Max processing current | 7A | |||
| Optimum surface roughness | First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um | |||
| Cutting accuracy | Line≤±0.0025mm, taper≤±0.01mm | |||
| Hop accuracy | 0.01mm/0-200mm、0.015mm/0-350mm、0.02mm/0-500mm | |||
| Max cutting taper | ±3°/80mm | |||
| Electrode wire diameter range (molybdenum wire) | 0.12-0.25mm(standard configuration 0.18mm) | |||
| Driving mode | X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation | |||
| Cutting fluid box configuration | High pressure slow wire filtration, volume 100L | |||
| Cutting fluid ratio | Dick liquid mixed with pure water, concentration 8-12 | |||
| Power consumption of complete machine | ＜2KW | |||
| Power supply | Three-phase four-wire 380VAC/50HZ | |||
| Host weight | 1860kg | 2160kg | 2750kg | 3450kg |
| Host outline size (L*W*H) | 1.57×1.1×1.7M | 1.6×1.22×1.7M | 1.85×1.4×1.8M | 2.07×1.65×2.06M |
| Packaging outline size (L*W*H) | 1.72×1.3×1.8M | 1.85×1.42×1.8M | 2.05×1.6×1.9M | 2.34×2.1×2.16M |

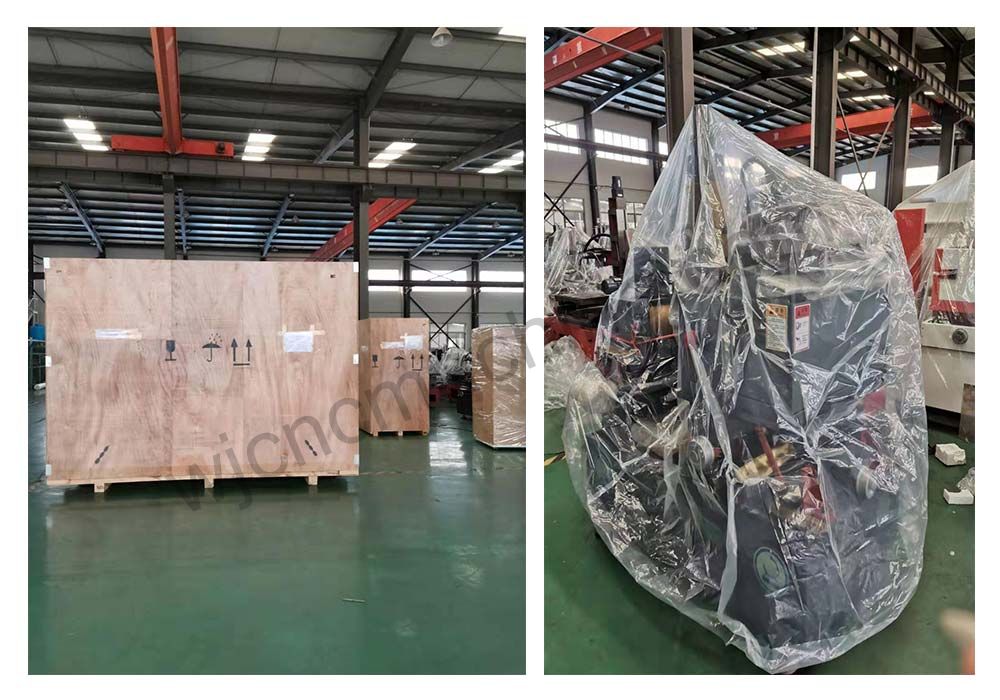

PACKAGE
1. Shrunck plastic film + plywood case
2. Shrunck plastic film + steel pallet
3. Customerized package
DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 12 hours.

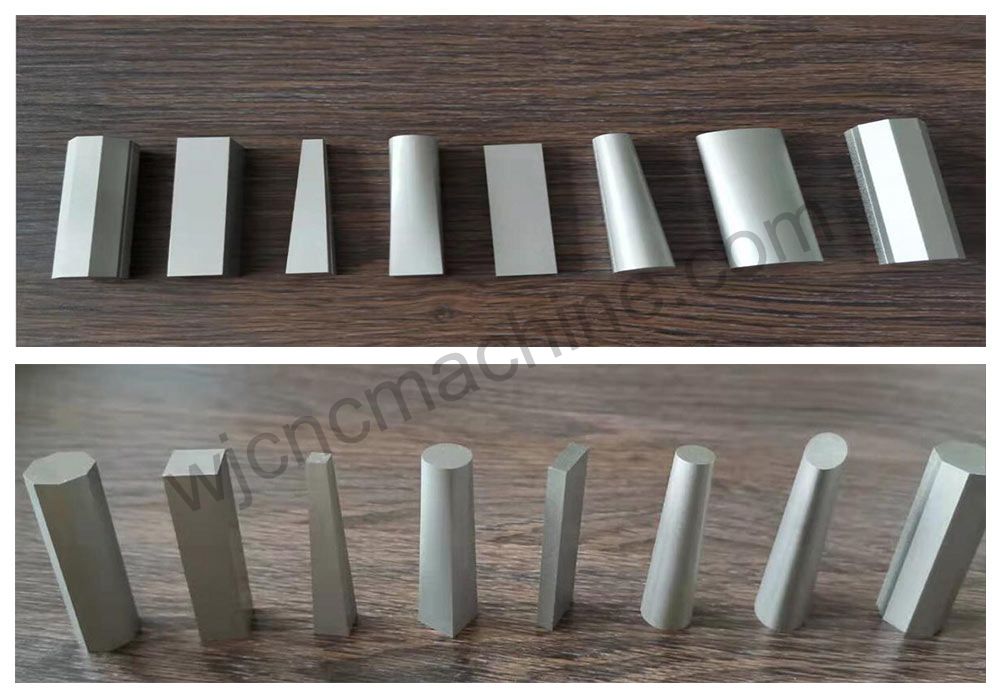

WORKPIECE SHOW
FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for professional operation training.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.

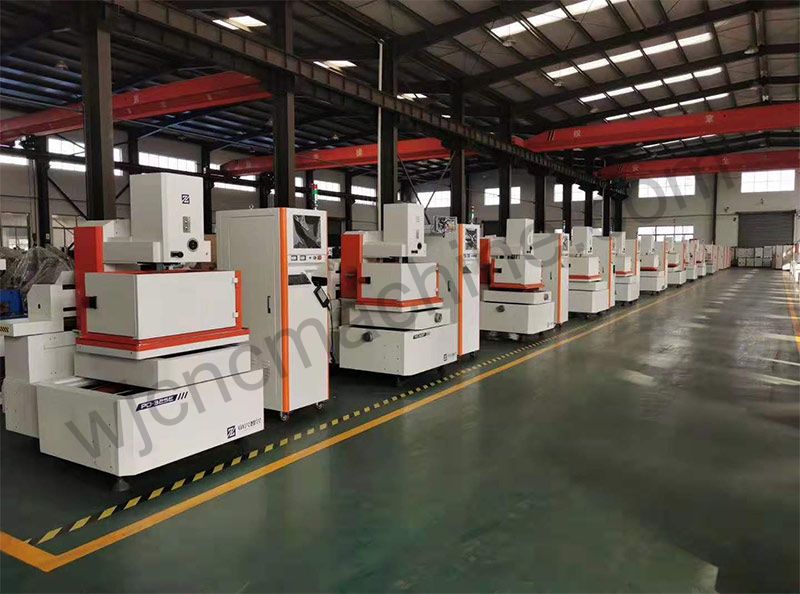

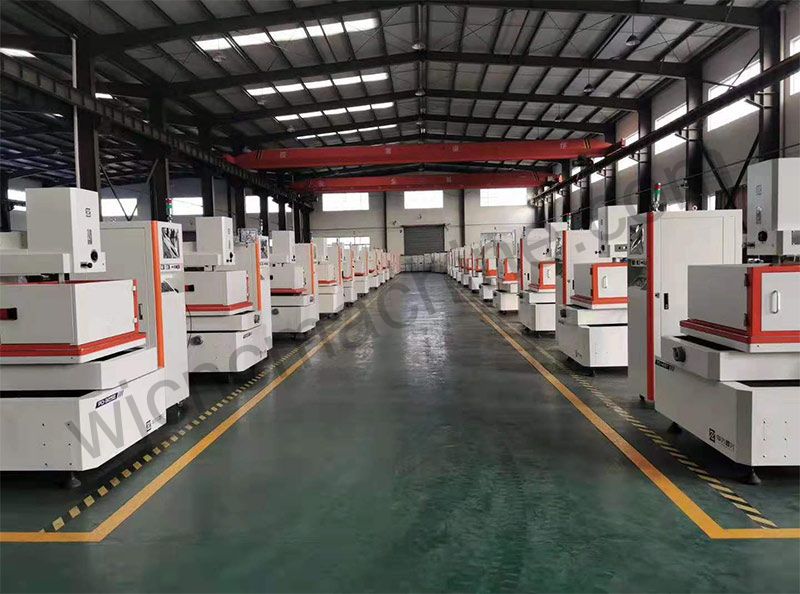

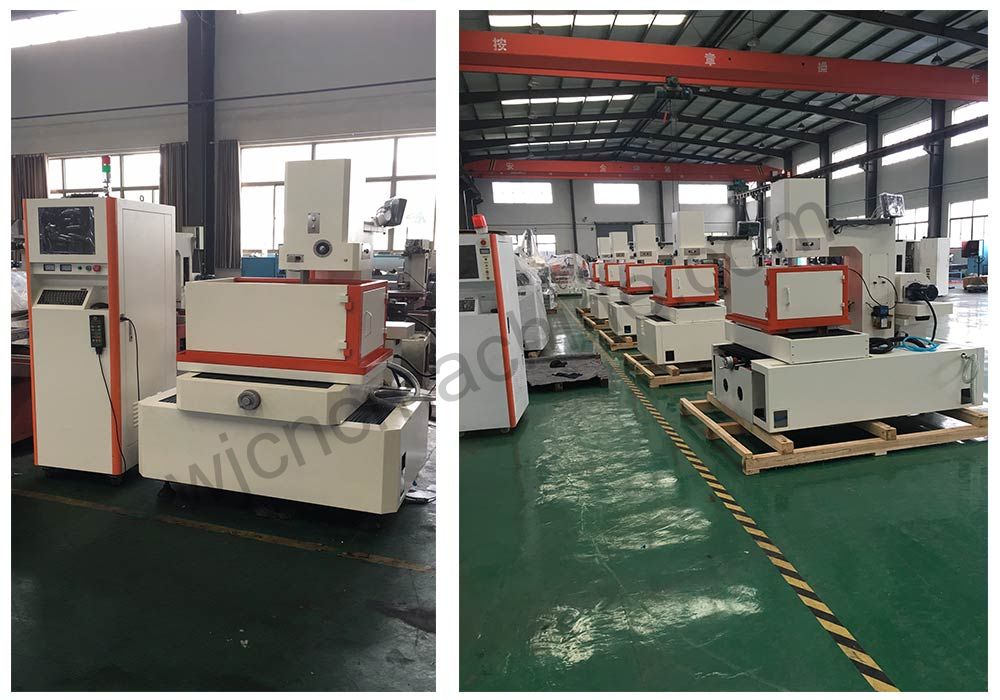

OUR FACTORY
