PD Series CNC Wire Cut EDM Machine | High Precision Metal Cutting Solution
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: PD SERIES
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT L/C
Function: Wire cut, Multi cut
MOQ: 1 SET
Product Description
The PD Series CNC Wire Cut EDM Machine is a high-performance solution designed for precision metal cutting. Built with advanced control technology and a stable mechanical structure, it delivers excellent cutting accuracy, smooth surface finish, and reliable long-term operation.
Ideal for mold manufacturing, precision parts processing, and complex contour cutting, the PD series ensures both efficiency and consistency in demanding industrial environments.
Key Features
✅ High Precision Cutting
Achieves excellent dimensional accuracy and fine surface finish for complex workpieces.

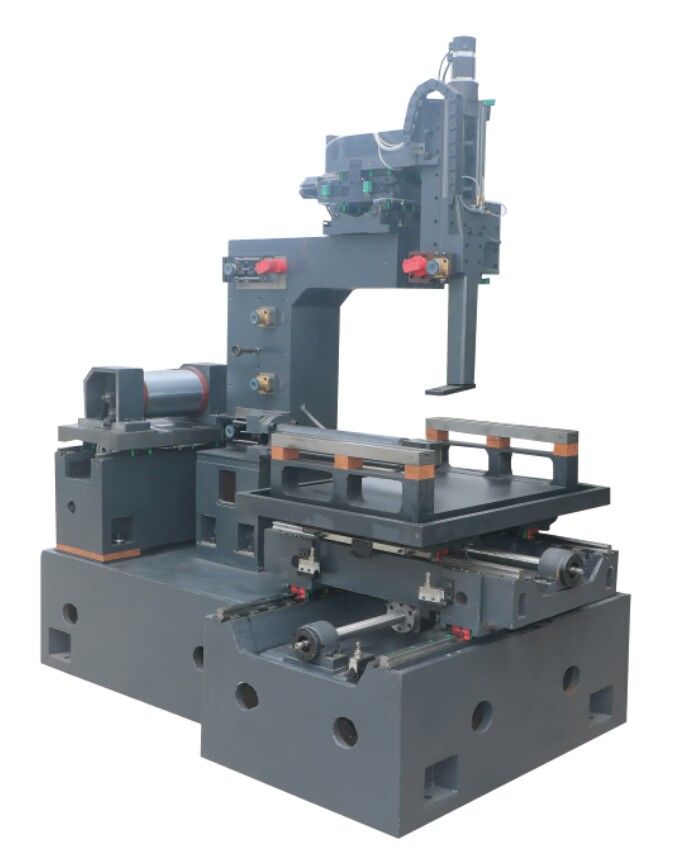

✅ Stable Mechanical Structure
Heavy-duty machine body ensures vibration resistance and long-term stability.
✅ User-Friendly Control System
Equipped with an intuitive control panel for easy operation and programming.
✅ Efficient Cutting Performance
Optimized electrical discharge system improves cutting speed and efficiency.
✅ Wide Application Range
Suitable for steel, copper, aluminum, and various conductive materials.
Applications
Mold & Die Manufacturing
Precision Mechanical Parts
Automotive Components
Aerospace Components
Tooling Industry
Electronic Parts Processing
TECHNICAL DATA

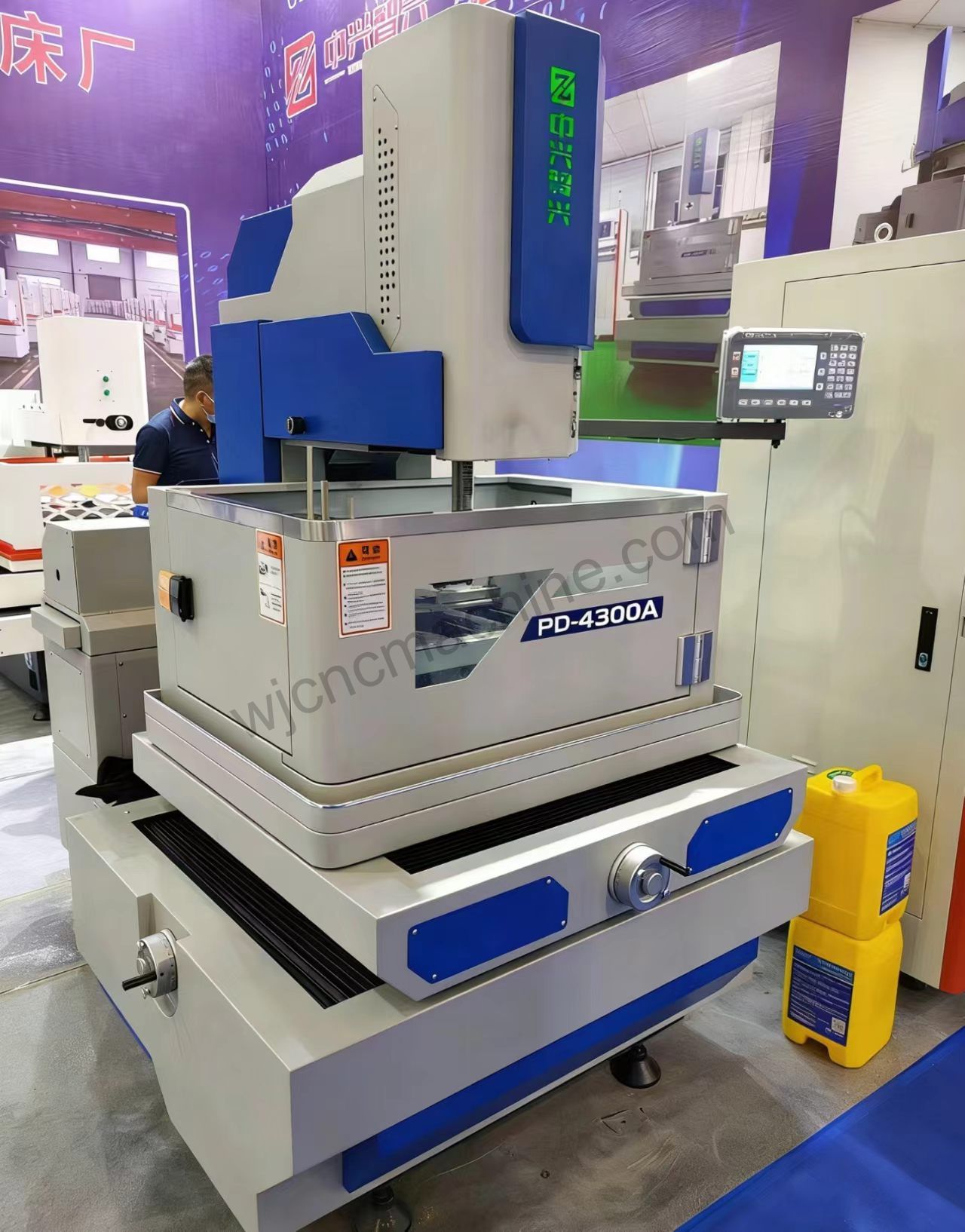

| Model | PD-4300A | PD-5400A |
| Worktable Size (mm) | 750×570 | 900×680 |
| Worktable Travel (mm) | 400×320 | 500×400 |
| Max Cutting Thickness（mm） | 300 | 300 |
| Max Load Weight（kg） | 300 | 400 |
| Max Cutting Efficiency (mm2/min) | 180 | |
| Max Processing Current | 7A | |
| Surface Roughness | First cutting Ra≤2.5um, second cutting Ra≤1.6um, third cutting Ra≤1.0um | |
| Optimal Surface Dimension Error（mm） | ≤0.015 (Ø10） | |
| Max cutting taper | 6°/80mm | |
| Electrode wire diameter range (molybdenum wire) | 0.12-0.25mm(standard 0.18mm) | |
| Power consumption of complete machine | ＜2KW | |
| Power supply | 3P4W 380VAC/50HZ | |
| Weight (kg) | 1900 | 2400 |
| Machine Size (L*W*H) mm | 1850×1160×2000 | 1930×1450×2000 |
Why Choose Us
✔ 20+ Years Manufacturing Experience
✔ Strict Quality Control System
✔ Stable Performance with Low Maintenance
✔ Professional Technical Support
✔ Fast Delivery & Global Export Experience
FAQ
Q: What is a CNC wire cut EDM machine?
A: It is a precision metal cutting machine that uses electrical discharge to cut conductive materials.
Q: What materials can it cut?
A: Steel, aluminum, copper, brass and other conductive metals.
