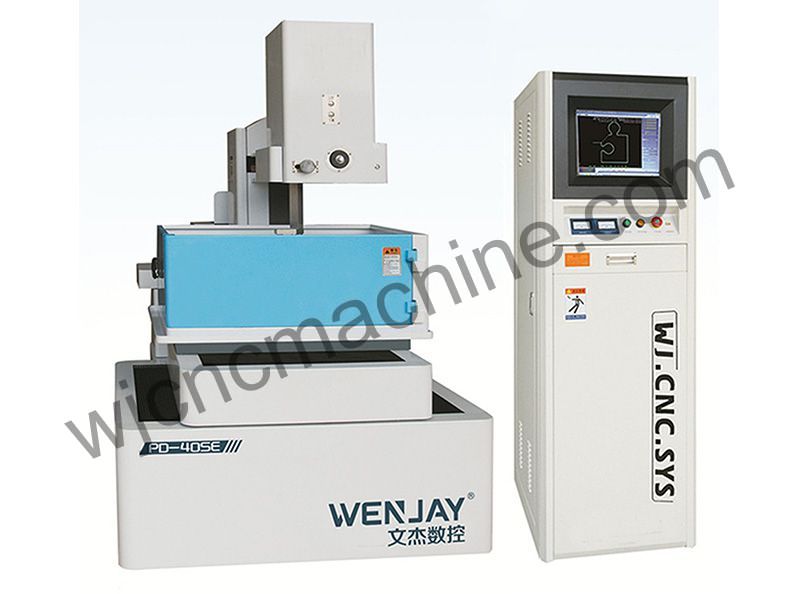

PD-40SE
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: PD-40SE/ST
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT L/C
Function: Wire cut, Multi cut
MOQ: 1 SET
Product Description
Machine tool type | PD-40SE/ST |
Worktable Size (W*L) | 850×600mm |
Max trip of X,Y-axis of the worktable (Y×X) | 500×400mm |
Max cutting thickness | 250mm |
Max load weight | 500kg |
Max cutting efficiency | 180mm²/min |
Max processing current | 7A |
Optimum surface roughness | First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um |
Cutting accuracy | Line≤±0.0025mm, taper≤±0.01mm |
Hop accuracy | 0.01mm/0-200mm、0.015mm/0-350mm、0.02mm/0-500mm |
Max cutting taper | ±3°/80mm |
Electrode wire diameter range (molybdenum wire) | 0.12-0.25mm(standard configuration 0.18mm) |
Driving mode | X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation |
Cutting fluid box configuration | High pressure slow wire filtration, volume 100L |
Cutting fluid ratio | Dick liquid mixed with pure water, concentration 8-12 |
Power consumption of complete machine | <2KW |
Power supply | Three-phase four-wire 380VAC/50HZ |
Host weight | 2160kg |
Host outline size (L*W*H) | 1600×1220×1700mm |
Packaging outline size (L*W*H) | 1850×1420×1800mm |
