KE6400A CNC Wire Cut Machine Tool For Multi Cut
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: KE Series
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT/LC
Function: Wire cut, Multi cut
MOQ: 1 SET
Product Description
INTRODUCTION
KE Series Cnc Wire Cutting Machine Edm
1. It is the updated version of fast speed WEDM machine. Adopt traditional F-type wire frame of fast speed WEDM machine
2. Well-known brand linear railway for carriage and wire feed
3. Diamond guide, linear railway taper head
4. MServo motor are optional. If add linear scale, accuracy level will be higher
FEATURES
Precise ball screw, Hiwin/PMI/Qishan North linear railway.`
High column matches electric lift to adjust the gap of guide wheel.
Cutting aluminum device (Optional)
Dro for X Y axis/X Y Z axis.
CHK/Autocut software
Cutting taper ±6° ±10° ±30° are optional

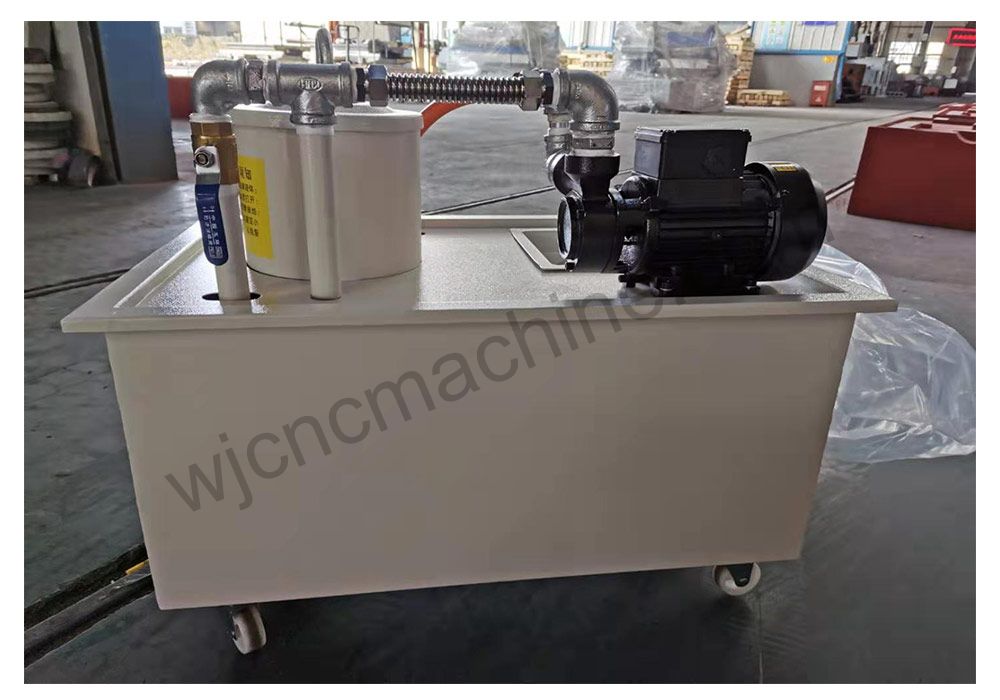

High pressure water pump with filters
PERFORMANCE
Four axis linkage, wire breaking protection.
Excellent rigidity, high precision.
Low noise, reasonable price.
Easy to operate and maintain.
Especially suitable for mould processing.
TECHNICAL DATA
| Model | KE6400A |
| Worktable Travel(X*Y)mm | 400*500 |
| Worktable Size(L*W)mm | 640*985 |
| Max. Worktable Load Capacity（kg） | 500 |
| Max. Cutting Thickness（mm） | 400 |
| Max. Taper/Workpiece Thickness（mm） | ±10°/80（Standard） |
| Cutting accurancy (mm) | 0.01(Cr12, H=40mm) |
| Screws＆Railway | Precision ball screw/Linear motion guide |
| Max. Cutting Efficiency（mm²/min） | 160mm2/min |
| 3 Times Cut Average Cutting Efficiency （mm²/min） | 80mm2/min |
| Voltage and Frequency | customerized |
| Z axis | automatic |
| Machine Weight（kg） | 1450 |
| Machine Size(L*W*H) MM | 1900x1580x1800 |
| High pressure water tank with filter | 75L |

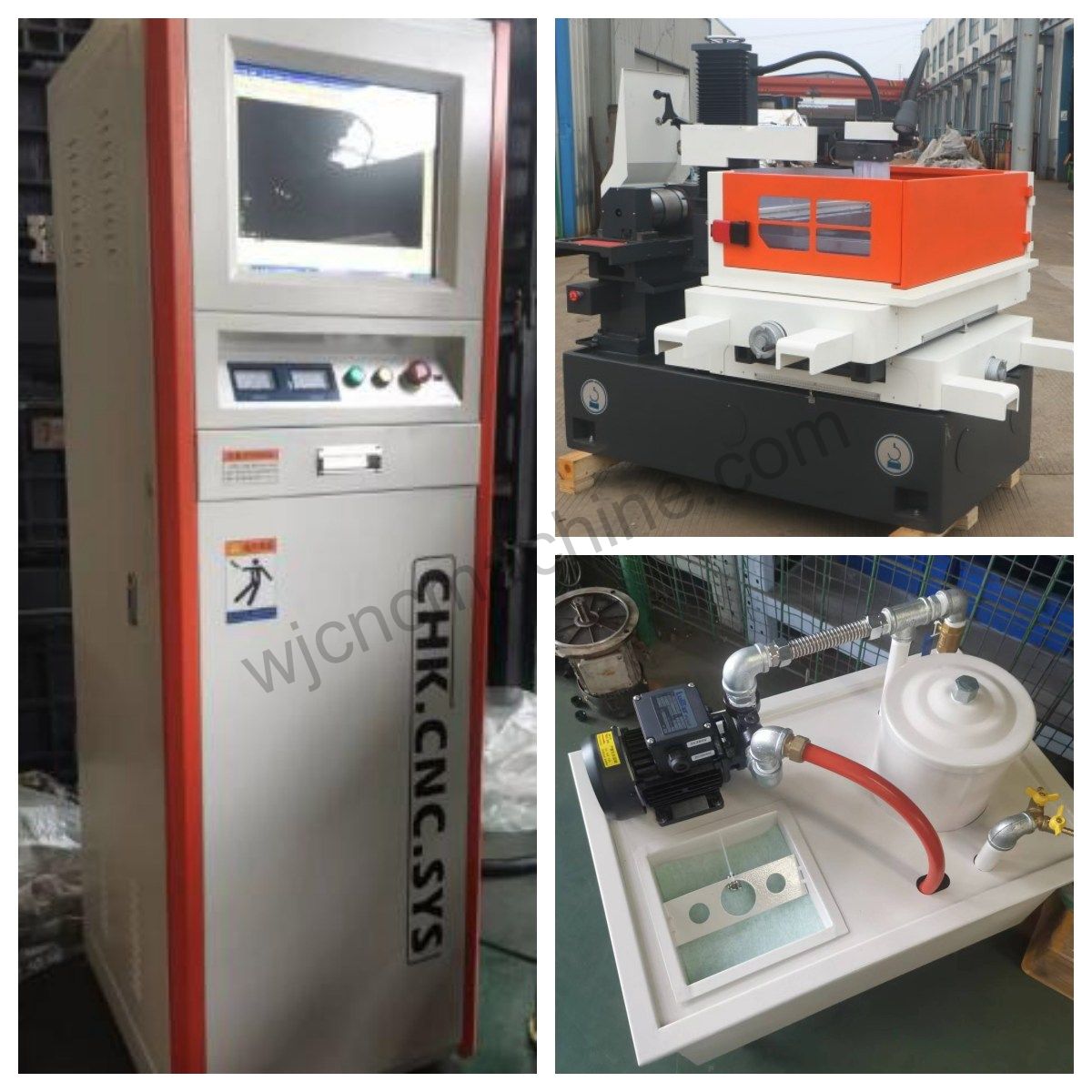

PRODUCT DETAILS

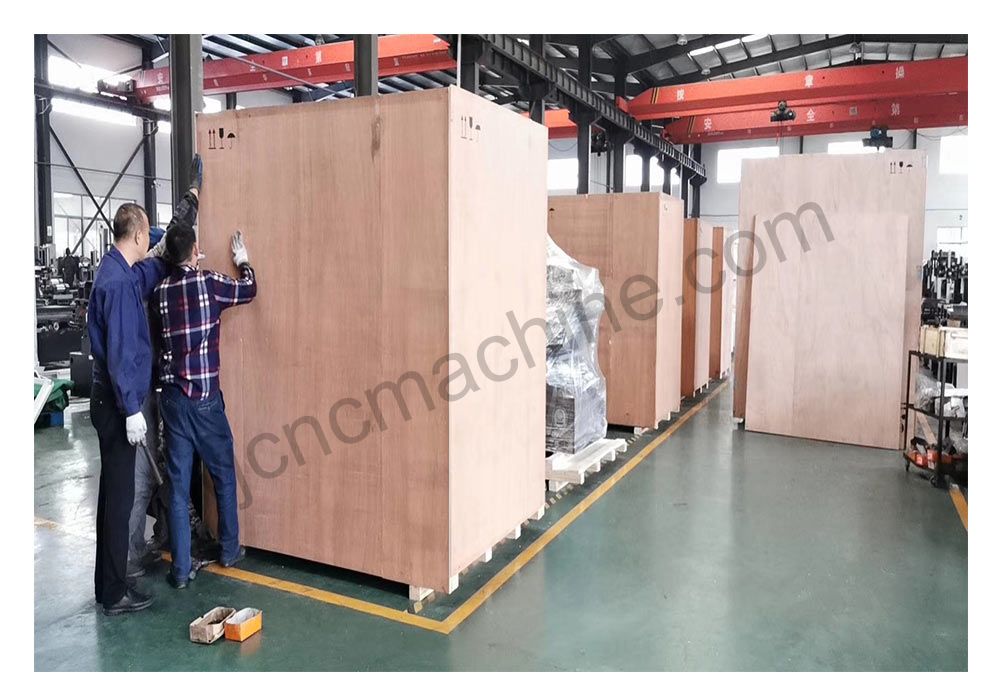

PACKAGE
Shrunck plastic film + plywood case
Shrunck plastic film + steel pallet
Customerized package
DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 12 hours.
FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for free professional operation training.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.
OUR FACTORY
OUR EXHIBITION
We have strong production capacity, fast delivery time, and professional technical support.
What we offer is on best price, and with best quality.
We focus on product innovation, and respect of client needs, culture, identity, objectives.
