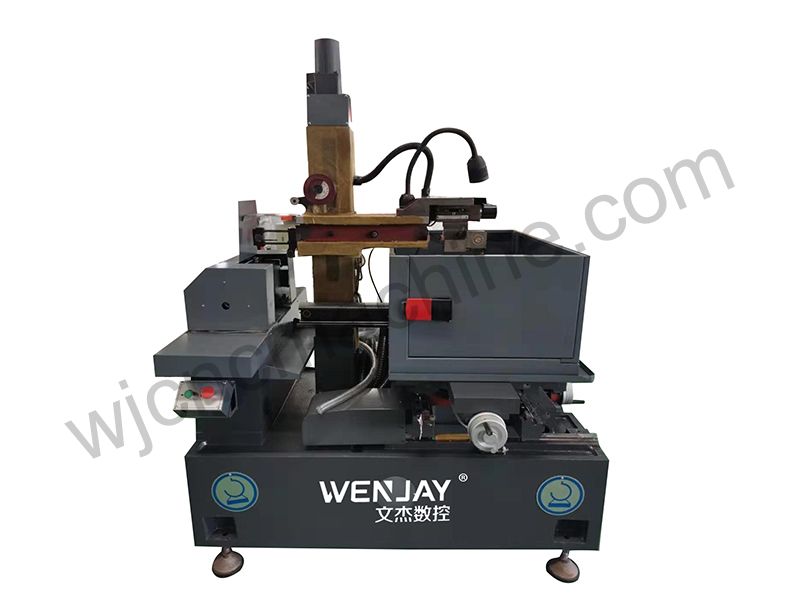

EP-32 Wire Cut Machine EDM for Multi Cut
Machine Type: Wire EDM
CNC or not: CNC
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Function: Wire cut, Multi cut
MOQ: 1 SET
|Working Table Size (W*L)(mm)||420*670|
|Table Stroke X*Y(mm)||320*400|
|Z axis travel (mm)||400 moterized|
|Max. Cutting Thickness (mm)||400|
|Max. Weight-bearing (KG)||300|
|Max. Cutting Speed (mm²/min)||Single Cut 170|
|Max. Working Current (A)||12|
|Surface Roughness||Multi Cut Ra≤1.5μm|
|Max. Cutting Taper||±6°/80mm|
|Cutting Accuracy||0.01mm (Cutting 40mm thickness Cr12 φ8mm round or square)|
|Max. Wire Feed Rate||1~11.4m/sec|
|Electrode Wire Diameter Range(Molybdenum Wire)||Φ0.15-0.20mm(standard 0.18mm)|
|Control Type||X, Y, U, V Stepping Drive|
|Linear Scale||Haiwin, Taiwan|

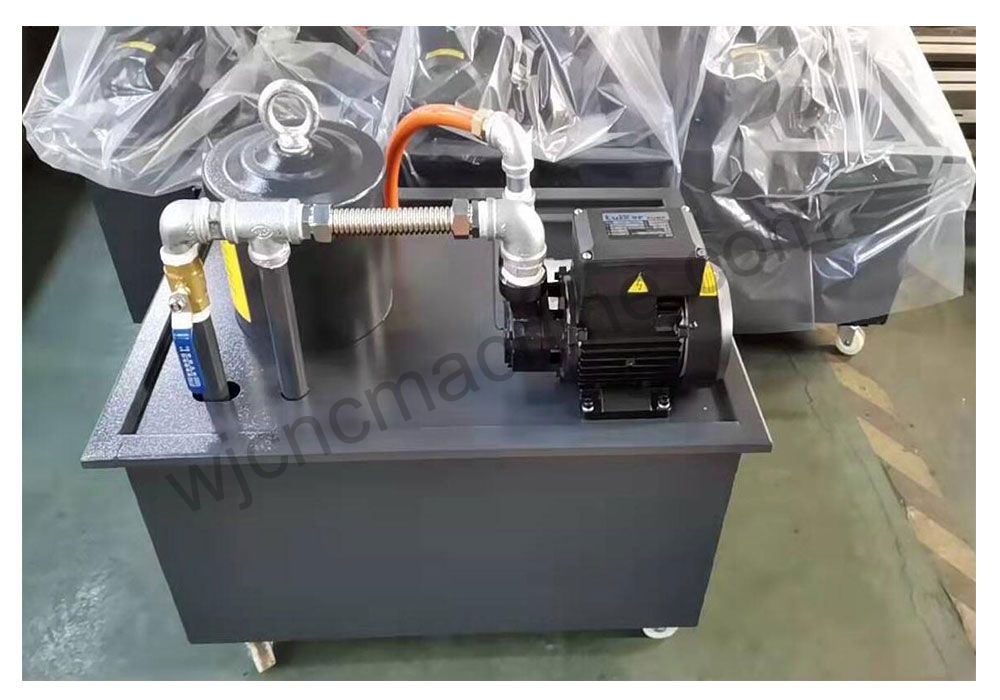

|Working Liquid||DX-1 DX-4 NANGUANG-1, volume 55L|
|Power consumption( Kw)||＜2|
|Power Supply||380V 50HZ|
|Machine Weight (kg)||1300|
|Machine Size (L*W*H)mm||1650*1345*1810mm|
|Data Input/Output||USB PORT|
|Programming software||Auto cut software|
|Axis control||4 axis x y u v|
Four axis linkage, wire breaking protection.
Excellent rigidity, high precision.
Low noise, reasonable price.
Easy to operate and maintain.
Especially suitable for mould processing.

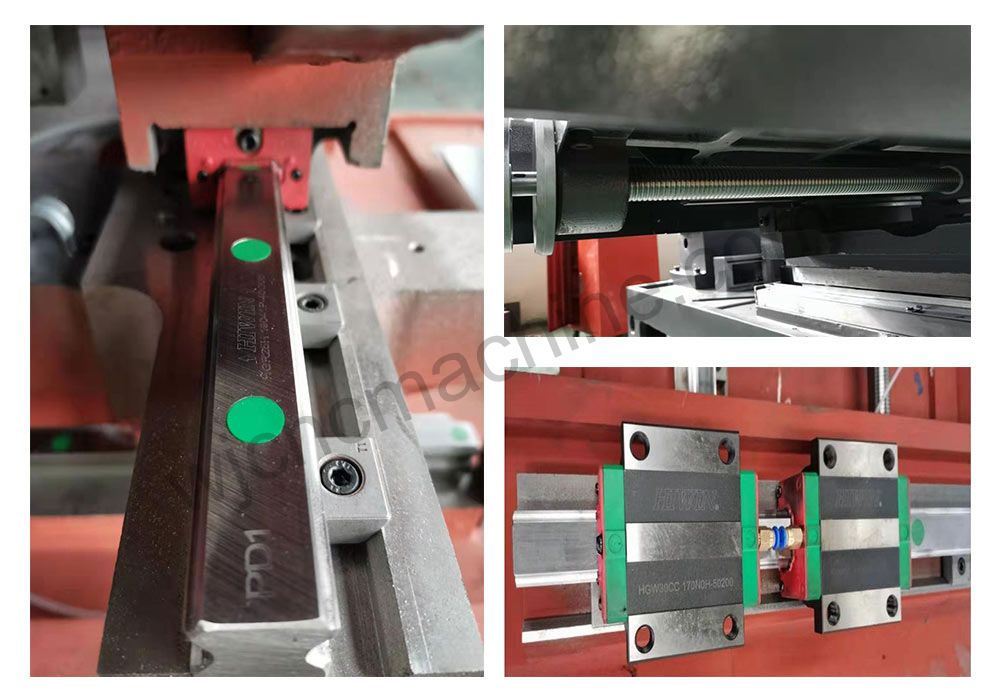

Precise ball screw, Hiwin linear railway.`
High column matches electric lift to adjust the gap of guide wheel.
Large swing taper machine matches wire extension gear.
Cutting aluminum device.
Sino dro for X Y axis/X Y Z axis.
1. Shrunck plastic film + plywood case
2. Shrunck plastic film + steel pallet
3. Customerized package
15 days after order confirmation
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 12 hours.
Q: Are you a manufacturer or trading company?

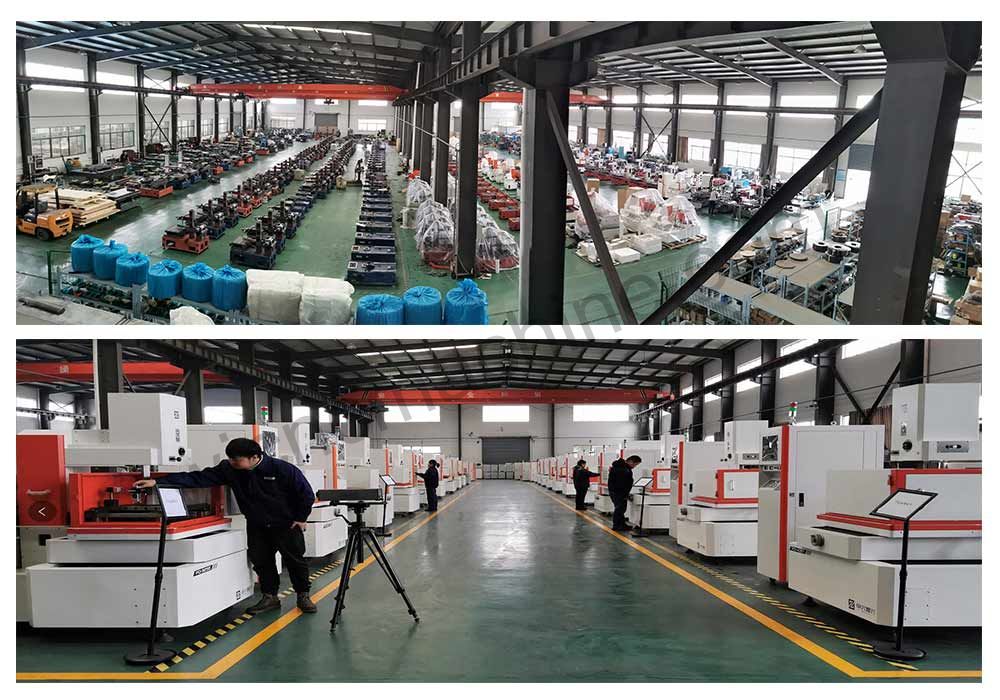

A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for professional operation training.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.

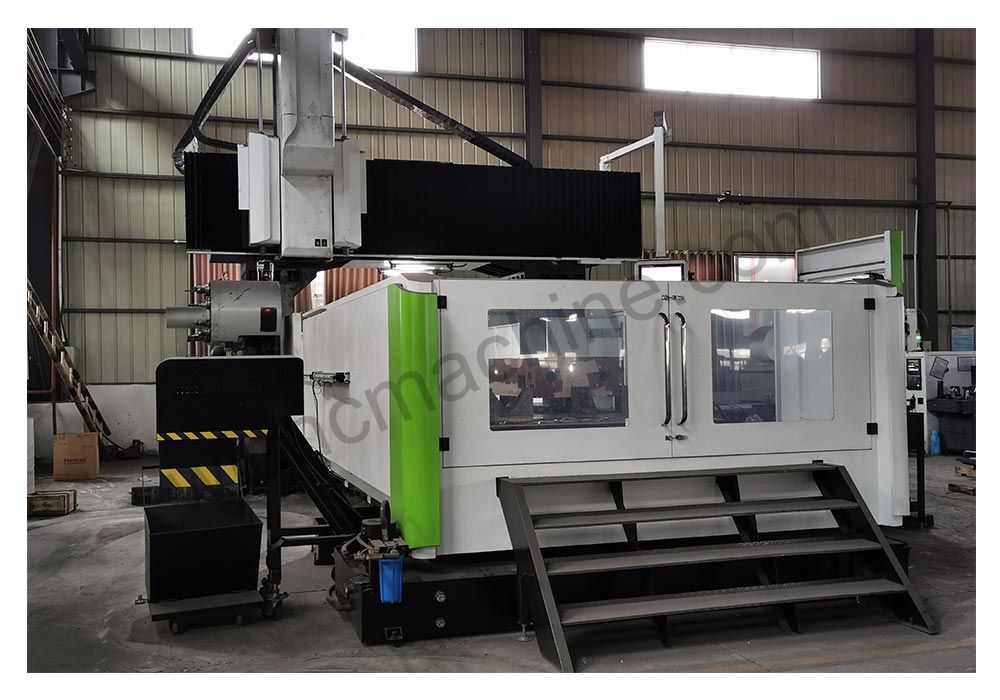

We have strong production capacity, fast delivery time, and professional technical support.
What we offer is on best price, and with best quality.
We focus on product innovation, and respect of client needs, culture, identity, objectives.
