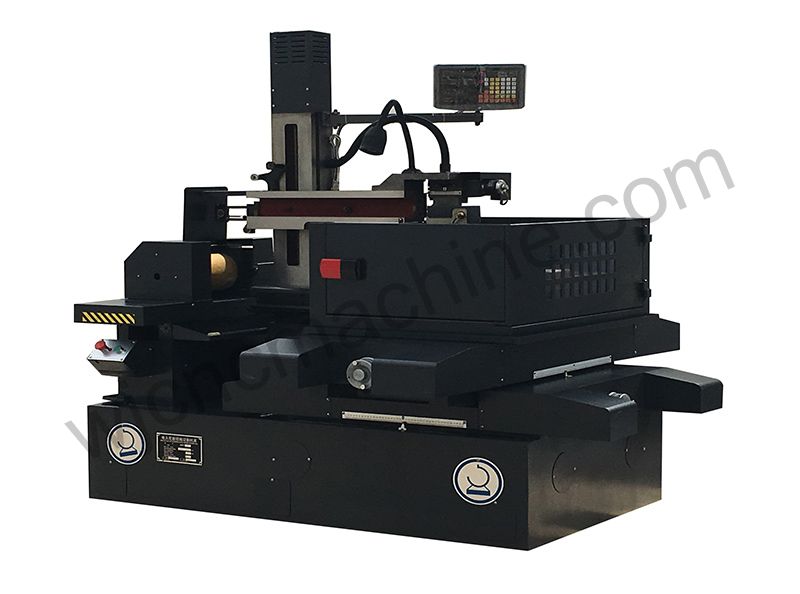

EP-45 Wire Cut Machine EDM for Multi Cut
Machine Type: Wire EDM
Condition: New
CNC or not: CNC
Model: EP-45
Brand: WENJAY
Place of Origin: Jiangsu, China
Certification: ISO9001:2008, CE
Payment: TT/LC
Function: Wire cut, Multi cut
MOQ: 1 SET
Product Description
TECHNICAL DATA
Model | EP-45 |
Working Table Size (W*L)(mm) | 610*860 |
Table Stroke X*Y(mm) | 450*550 |
Z axis travel (mm) | 500 moterized |
Table Stroke(U/V)(mm) | 30*30 |
Max. Cutting Thickness (mm) | 430 |
Max. Weight-bearing (KG) | 450 |
Sino dro and linear scale | With |
Diamond guide | With |
Deluxe water tray | With |
Tensioning gear | With |
Linear Guideway | With |
High pressure water tank | With |
Max. Working Current (A) | 12 |
Surface Roughness | Single Cut Ra≤2.5μm Multi Cut Ra≤1.5μm |
Max. Cutting Taper | ±12°/80mm |
Cutting Accuracy | 0.01mm (Cutting 40mm thickness Cr12 φ8mm round or square) |
Max. Wire Feed Rate | 11m/sec |
Electrode Wire Diameter Range (Molybdenum Wire) | Φ0.15-0.20mm(standard 0.18mm) |
Control Type | X, Y, U, V Stepping Drive |
Working Liquid | DX-1 DX-4 NANGUANG-1, volume 55L |
Power consumption( Kw) | <2 |
Power Supply | 415V 50HZ |
Machine Weight (kg) | 1400 |
Machine Size (L*W*H)mm | 1800*1300*1950mm |
PERFORMANCE
Four axis linkage, wire breaking protection.
Excellent rigidity, high precision.
Low noise, reasonable price.
Easy to operate and maintain.
Especially suitable for mould processing.
FEATURES
Precise ball screw, Hiwin linear railway.`
High column matches electric lift to adjust the gap of guide wheel.
Large swing taper machine matches wire extension gear.
Cutting aluminum device.
Sino dro for X Y axis/X Y Z axis.
PRODUCT DETAILS
PACKAGE
Shrunck plastic film + plywood case
Shrunck plastic film + steel pallet
Customerized package
DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not damaged due to improper operation (consumables are excluded). Out of warranty period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 12 hours.
FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have been in the industry for 20 years more. All the casting and metal plates are made by ourselves.
Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you can send someone to my company for free professional operation training.
Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your special requirement.
OUR FACTORY
OUR EXHIBITION
We have strong production capacity, fast delivery time, and professional technical support.
What we offer is on best price, and with best quality.
We focus on product innovation, and respect of client needs, culture, identity, objectives.
