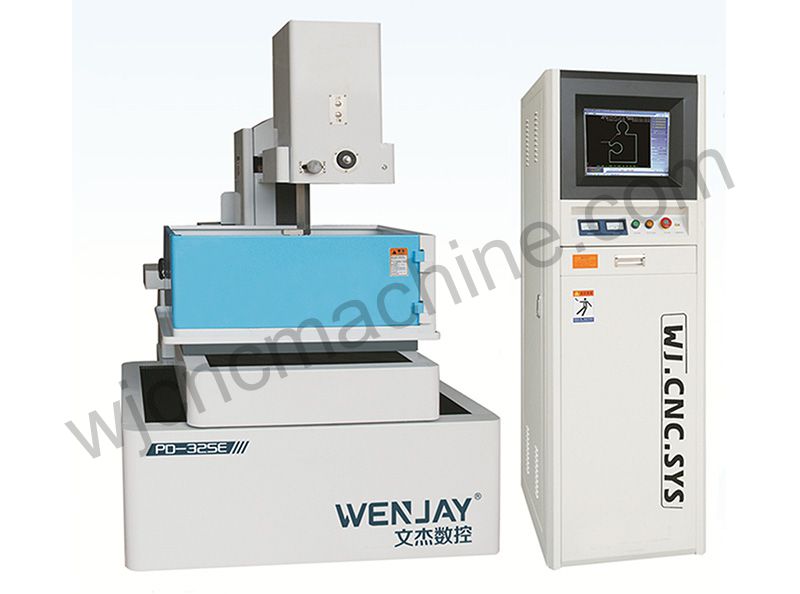

PD-32SE

Machine Type: Wire EDM

Condition: New

CNC or not: CNC

Model: PD-32SE/ST

Brand: WENJAY

Place of Origin: Jiangsu, China

Certification: ISO9001:2008, CE

Payment: TT L/C

Function: Wire cut, Multi cut

MOQ: 1 SET


Product Description

Machine tool type PD-32SE/ST
Worktable Size (W*L)760×520mm
Max trip of X,Y-axis of the worktable (Y×X)400×320mm
Max cutting thickness250mm
Max load weight300kg
Max cutting efficiency180mm²/min
Max processing current7A
Optimum surface roughnessFirst cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um
Cutting accuracyLine≤±0.0025mm, taper≤±0.01mm
Hop accuracy0.01mm/0-200mm、0.015mm/0-350mm、0.02mm/0-500mm
Max cutting taper±3°/80mm
Electrode wire diameter range (molybdenum wire)0.12-0.25mm(standard configuration 0.18mm)
Driving modeX, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation
Cutting fluid box configurationHigh pressure slow wire filtration, volume 100L
Cutting fluid ratioDick liquid mixed with pure water, concentration 8-12
Power consumption of complete machine<2KW
Power supplyThree-phase four-wire 380VAC/50HZ
Host weight1860kg
Host outline size (L*W*H)1570×1100×1700mm
Packaging outline size (L*W*H)1720×1300×1800mm
